Overview

Per-user OAuth is available in Bifrost v1.5.0-prerelease2 and above.
auth_type: "per_user_oauth" lets each end-user connect to an upstream MCP service (Notion, GitHub, Sentry, etc.) under their own account. Bifrost stores one OAuth token per (identity, mcp_client) and reuses it on every later call. If a single shared admin token is fine, use OAuth 2.0 instead. This auth type is only valid for HTTP and SSE connections.
Bifrost is not an OAuth 2.1 Authorization Server. The MCP Gateway (/mcp) does not advertise its own .well-known endpoints or run a consent screen for inbound MCP clients. Identity is asserted by the caller via headers (or upstream SSO), and auth happens lazily — on the first tool call that needs an upstream token.
Server-level OAuth (oauth)Per-user OAuth (per_user_oauth)
Who authenticatesAdmin, once at setupEach end-user individually
Token scopeShared across all requestsPer-identity, per-MCP-server
Identity requiredNoYes (VK, signed-in user, or session ID)
Sessions UINot surfacedOne row per (identity, MCP)

​
Setup

Per-user OAuth is configured through the Web UI only. During setup Bifrost runs a test OAuth flow as the admin and pre-fetches the tool list from the upstream service — that’s why file-based config is not supported for this auth type. (Once the MCP client is persisted, the admin’s temp token is discarded; per-user tokens are minted lazily by end-users.)
  1. Navigate to MCP Gateway in the sidebar
  2. Click New MCP Server
  3. Pick HTTP or SSE as the connection type, fill in the Connection URL
  4. Set Auth Type to Per-User OAuth 2.0
  5. Fill in the OAuth fields:
    • Client ID (optional — leave blank for Dynamic Client Registration)
    • Client Secret (optional — omit for PKCE public clients)
    • Authorize URL / Token URL (optional — leave blank for OAuth discovery)
    • Scopes (comma-separated)
  6. Click Create — Bifrost runs a test OAuth flow in a popup as the admin
  7. Complete the upstream sign-in
  8. The MCP client is persisted with the discovered tool list and made available for end-users
MCP client form with Auth Type set to Per-User OAuth 2.0 and the OAuth fields ready for setup
If the upstream server supports OAuth Discovery (RFC 8414), you can leave the authorize and token URLs blank and provide only the Connection URL plus client ID. Bifrost discovers the endpoints automatically.

​
How it works

The same lazy-auth pattern is used on both the MCP Gateway (/mcp) and the LLM Gateway (/v1/chat/completions):
  1. The caller sends a request with an identity (header or SSO).
  2. The LLM (or MCP client) asks to invoke a tool on a per-user OAuth service.
  3. Bifrost looks up an existing token for (identity, mcp_client):
    • Token found and active → upstream call goes out transparently
    • Missing, orphaned, or needs_reauth → Bifrost returns an mcp_auth_required payload with an inline authorize_url. The tool is not executed.
  4. The user opens the URL, completes the upstream OAuth flow, and Bifrost stores the resulting token against their identity.
  5. The next request executes the tool normally.
Per-user OAuth lazy flow — identity → tool call → auth URL → upstream OAuth → tool executes

​
What the auth URL looks like

LLM Gateway — authorize_url is on the response’s extra_fields.mcp_auth_required block, and also embedded in the natural-language message so plain-text clients see it too:
Authentication required for Notion. Open this URL to connect your account: https://your-bifrost-domain.com/workspace/mcp-sessions/auth?flow=<flow-id>
VK and session-mode URLs may also carry a #t=<temp-token> fragment when mcp_enable_temp_token_auth is turned on. User-mode URLs never do — they require SSO login regardless.
LLM Gateway response with mcp_auth_required and an inline authorize_url
MCP Gateway — same string surfaces as a tool result message, so OAuth-capable MCP clients like Claude Code and Cursor see the URL inline in chat:
Auth URL surfaced inline in a Claude Code tool result

​
The consent page

The URL points at a Bifrost dashboard page. It shows:
  • Which MCP server is asking for authentication
  • Which identity the resulting token will be bound to (VK name, signed-in user, or session ID)
  • An Authenticate button that redirects to the upstream provider
After completing upstream OAuth, the user is redirected back to /api/oauth/callback, the code is exchanged for tokens server-side, and the token is stored against the identity.

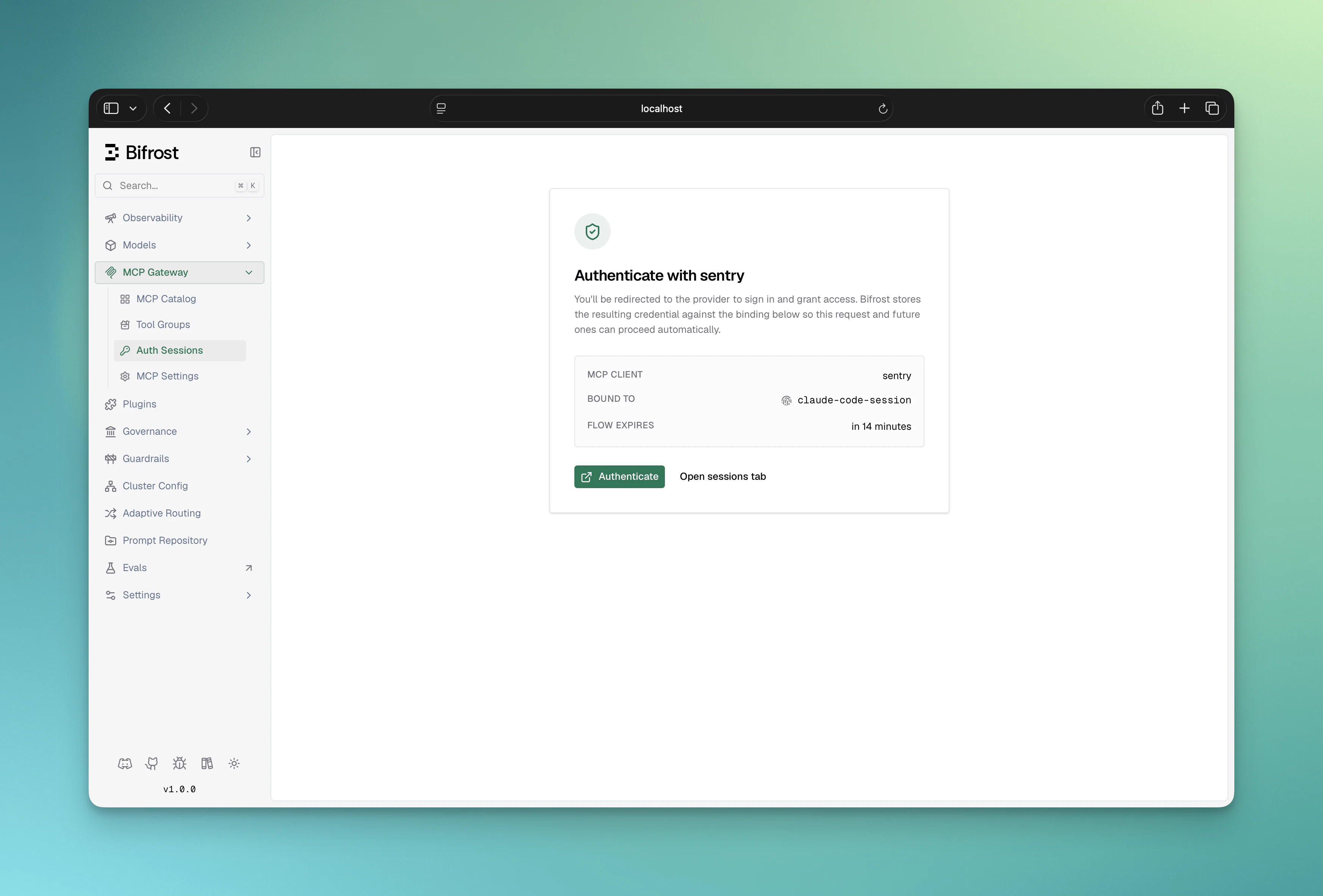

Bifrost consent page at /workspace/mcp-sessions/auth?flow=<id>, showing the MCP server, the identity, and an Authenticate button
When the #t=<temp-token> URL fragment is present, it authorizes anonymous browser visitors to complete the flow without a dashboard session. The fragment never reaches server logs (fragments are not sent in the request line). User-mode flow URLs never carry a temp token — visitors must complete SSO login first, and only the bound SSO user can finish the flow. See Flow mode and access rules for the per-mode behavior and how to enable temp tokens for VK/session flows.

​
Multi-server auth

If a single LLM turn triggers tool calls against multiple unauthenticated per-user MCP servers, the LLM only ever sees one mcp_auth_required at a time (the first un-authed service Bifrost hits). The user authenticates that one, retries, and the LLM is then prompted for the next un-authed service — until everything required for the turn is authenticated. There is no upfront “connect all your services” screen.

​
Identity modes

Every per-user OAuth row is bound to exactly one identity column. The mode is derived from request context at lookup time, with priority user > vk > session. See Identity modes on the Auth overview for the full table. A per-user request without any identity is rejected with an mcp_auth_required payload that explains the caller must send a VK, sign in, or set x-bf-mcp-session-id.

​
Cross-gateway token sharing

Tokens are stored against an identity, not against a gateway. As long as the same identity reaches the gateway, the token is reused.
  • Authenticate via the LLM Gateway with vk_xyz → that token is immediately usable on the MCP Gateway as long as the inbound request also carries vk_xyz.
  • Authenticate via the MCP Gateway with x-bf-mcp-session-id=abc → the LLM Gateway can reuse it by sending the same x-bf-mcp-session-id header.
  • Authenticate via enterprise SSO as user u_123 on either gateway → the other gateway also reuses the token automatically (no header to set).

​
Configuration reference

Once an MCP client is created via the Web UI, its auth_type is per_user_oauth with an oauth_config_id linking to the OAuth credentials Bifrost stored. You’ll see this shape in API responses:
{
  "name": "notion",
  "connection_type": "http",
  "connection_string": "https://mcp.notion.so/sse",
  "auth_type": "per_user_oauth",
  "oauth_config_id": "oauth_cfg_abc123",
  "tools_to_execute": ["*"]
}
FieldTypeNotes
auth_typestring"per_user_oauth"
oauth_config_idstringID of the OAuth credentials row (set automatically by Web UI setup)
MCP client names cannot contain hyphens — Bifrost prefixes tools as <client>-<tool> and uses the hyphen to split the two halves at execution time.

​
Managing user tokens

Every per-user OAuth token shows up on the MCP Sessions page. From there callers can re-authenticate stale tokens, revoke rows outright, and see status (active, orphaned, needs_reauth). See MCP Sessions for the full lifecycle, the difference between orphaned and needs_reauth, and the auto-orphan-on-VK-change behavior.

​
Public URL configuration

The consent page URL Bifrost builds (/workspace/mcp-sessions/auth?flow=…) and the redirect_uri Bifrost registers with upstream OAuth providers are both derived from the request Host header by default. Behind a reverse proxy, override them with:
  • mcp_external_client_url — public base URL for both the consent page and the redirect_uri Bifrost registers with upstream providers
See Reverse Proxy configuration → for the full reference.
Changing mcp_external_client_url after an upstream provider has been registered breaks already-authorized clients. Upstream providers lock the redirect_uri to whatever was registered during Dynamic Client Registration. To recover, clear the stored OAuth client credentials for the affected MCP server so Bifrost re-registers with the new URL.

​
Next Steps

  • Per-User Headers — when there’s no upstream OAuth, just per-user API keys
  • OAuth 2.0 — admin authenticates once, shared token for all requests
  • MCP Sessions — token states, re-authenticate, revoke
  • MCP Gateway Mode — expose Bifrost as an MCP server for Claude Code / Cursor
