Bifrost as an MCP Gateway

This feature is only available on v1.4.0-prerelease1 and above.

This feature is only available in the Gateway deployment. It is not available when using Bifrost as a Go SDK.

Overview

Bifrost can act as an MCP server, exposing all your connected MCP tools to external MCP clients like Claude Desktop, Cursor, or any other MCP-compatible application. This enables a powerful pattern:

Connect Bifrost to multiple MCP servers (filesystem, web search, databases, etc.)
Expose all those tools through a single MCP endpoint
External clients connect to Bifrost and get access to all aggregated tools

Endpoints

Endpoint	Method	Purpose
`/mcp`	POST	JSON-RPC 2.0 messages for tool discovery and execution
`/mcp`	GET	Server-Sent Events (SSE) for persistent connections

POST /mcp (JSON-RPC)

Handle JSON-RPC 2.0 messages for tool listing and execution:

# List available tools
curl -X POST http://localhost:8080/mcp \
  -H "Content-Type: application/json" \
  -d '{
    "jsonrpc": "2.0",
    "id": 1,
    "method": "tools/list"
  }'

# Call a tool
curl -X POST http://localhost:8080/mcp \
  -H "Content-Type: application/json" \
  -d '{
    "jsonrpc": "2.0",
    "id": 2,
    "method": "tools/call",
    "params": {
      "name": "filesystem_read_file",
      "arguments": {
        "path": "/tmp/test.txt"
      }
    }
  }'

GET /mcp (SSE)

Establish a persistent SSE connection for real-time communication:

curl -N http://localhost:8080/mcp \
  -H "Accept: text/event-stream"

The SSE endpoint sends:

connection/opened message on connect
Keeps connection alive until client disconnects

External MCP Client Integration

The /mcp endpoint supports any MCP-compatible client that can communicate via HTTP or SSE:

Claude Desktop - macOS and Windows desktop application
Cursor - IDE with MCP support
Custom Applications - Any app implementing the MCP protocol
Browser Extensions - Tools with MCP client capability

To connect an external MCP client, configure it to connect to:

http://your-bifrost-gateway/mcp

Include any required Virtual Key authentication headers if governance is enabled.

Virtual Key Authentication

Bifrost supports per-Virtual Key MCP servers, allowing you to expose different tools to different clients.

Global Server (No Virtual Key)

When enforce_auth_on_inference is false, requests without a Virtual Key use the global MCP server with all available tools.

Virtual Key-Specific Servers

When using Virtual Keys, each VK gets its own MCP server with filtered tools based on its configuration. Authenticate with Virtual Key:

# Via Authorization header
curl -X POST http://localhost:8080/mcp \
  -H "Authorization: Bearer vk_your_virtual_key" \
  -H "Content-Type: application/json" \
  -d '{"jsonrpc": "2.0", "id": 1, "method": "tools/list"}'

# Via X-Api-Key header
curl -X POST http://localhost:8080/mcp \
  -H "X-Api-Key: vk_your_virtual_key" \
  -H "Content-Type: application/json" \
  -d '{"jsonrpc": "2.0", "id": 1, "method": "tools/list"}'

# Via x-bf-vk header
curl -X POST http://localhost:8080/mcp \
  -H "x-bf-vk: vk_your_virtual_key" \
  -H "Content-Type: application/json" \
  -d '{"jsonrpc": "2.0", "id": 1, "method": "tools/list"}'

Claude Desktop with Virtual Key:

{
  "mcpServers": {
    "bifrost-production": {
      "url": "http://localhost:8080/mcp",
      "headers": {
        "Authorization": "Bearer vk_your_production_key"
      }
    },
    "bifrost-development": {
      "url": "http://localhost:8080/mcp",
      "headers": {
        "Authorization": "Bearer vk_your_development_key"
      }
    }
  }
}

Tool Filtering for MCP Clients

Control which tools are exposed to MCP clients using Virtual Keys:

Per-Virtual Key Tool Access

Configure which tools each Virtual Key can access:

{
  "governance": {
    "virtual_keys": [
      {
        "name": "production-key",
        "mcp_configs": [
          {
            "mcp_client_name": "filesystem",
            "tools_to_execute": ["read_file", "list_directory"]
          },
          {
            "mcp_client_name": "web_search",
            "tools_to_execute": ["*"]
          }
        ]
      },
      {
        "name": "admin-key",
        "mcp_configs": [
          {
            "mcp_client_name": "filesystem",
            "tools_to_execute": ["*"]
          },
          {
            "mcp_client_name": "database",
            "tools_to_execute": ["*"]
          }
        ]
      }
    ]
  }
}

Learn more about Virtual Key tool filtering in MCP Tool Filtering.

Tool Auto-Execution Is Client-Side in Gateway Mode

The tools_to_auto_execute field on an MCP client config controls whether Bifrost auto-runs a tool call vs. surfacing it for manual approval. This setting only applies in Agent Mode — when Bifrost is also running the LLM loop and gating tool calls between model turns. When you use Bifrost purely as an MCP Gateway (the setup this page covers — Claude Desktop, Cursor, Cline, or any other MCP host connecting to Bifrost over /mcp), Bifrost has no LLM loop and no concept of “auto-execute vs. wait for approval.” Bifrost just exposes tools over the MCP protocol; the host application is the one running the agent loop, deciding whether each tools/call requires user confirmation, and surfacing the approval UI. Configure the auto-approval policy in your MCP client’s own settings:

Claude Desktop: tool-approval is per-tool in the host’s settings.
Cursor / Cline / Continue: each has its own “auto-approve” or “trust” lists in the MCP integration config.
Custom MCP hosts: the SDK you’re using (mark3labs/mcp-go, @modelcontextprotocol/sdk-typescript, etc.) typically exposes a callback for tool-call confirmation that you wire up yourself.

tools_to_auto_execute set on the Bifrost MCP client config will be silently ignored in gateway mode — it isn’t an error, just a no-op.

Advanced Gateway Features

Health Monitoring

Bifrost automatically monitors the health of connected MCP clients: How it works:

Ping Mechanism: Every 10 seconds (configurable), sends a ping to each connected client
Check Timeout: Each ping has a 5-second timeout
Failure Threshold: After 5 consecutive failed pings, client is marked as disconnected
State Tracking: Real-time state updates (connected ↔ disconnected)
Manual Reconnection: Once disconnected, requires manual reconnect via API or UI

Configuration:

{
  "mcp": {
    "health_monitor_config": {
      "check_interval": "10s",
      "check_timeout": "5s",
      "max_consecutive_failures": 5
    }
  }
}

When a client is disconnected after 5 consecutive failed health checks, tools from that client become unavailable. You can manually reconnect using the API or Go SDK: Gateway API:

POST /api/mcp/client/{id}/reconnect

Go SDK:

// Reconnect a disconnected MCP client
err := client.ReconnectMCPClient(context.Background(), clientID)
if err != nil {
    // Handle reconnection error
    log.Printf("Failed to reconnect client: %v", err)
}

Request ID Tracking

For Agent Mode operations, Bifrost can track intermediate tool executions:

mcpConfig := &schemas.MCPConfig{
    FetchNewRequestIDFunc: func(ctx context.Context) string {
        // Generate unique ID per agent iteration
        return fmt.Sprintf("agent-%s-%d", ctx.Value("original-id"), time.Now().UnixMilli())
    },
}

This enables detailed audit trails for autonomous tool execution.

Dynamic Tool Discovery

Tools are discovered from MCP servers during:

Client Connection - Initial ListTools request
Runtime Updates - When server tool list changes
Configuration Changes - When tools_to_execute is updated

The MCP Server dynamically updates its tool registry from the tool manager.

Per-User Auth on the Gateway

When at least one upstream MCP server is configured with per_user_oauth or per_user_headers, the /mcp endpoint serves per-user credentials lazily. Bifrost is not an OAuth Authorization Server — there is no .well-known/oauth-protected-resource discovery and no inbound consent screen. Inbound MCP clients identify themselves via headers:

x-bf-vk: <vk> (or Authorization: Bearer <vk> / x-api-key: <vk>) — VK-mode identity
x-bf-mcp-session-id: <opaque-string> — session-mode identity (client-asserted, must be re-sent on every call)
Enterprise SSO — user-mode identity, attached automatically by the auth middleware

When a tool call hits an MCP server the caller hasn’t authenticated against, Bifrost returns an mcp_auth_required tool result with an inline URL the user must visit. The payload carries a kind discriminator:

kind: "oauth" → authorize_url points at the upstream provider’s consent page (via a Bifrost intermediate)
kind: "headers" → submit_url points at a Bifrost form where the user enters their header values

The natural-language message also embeds the URL so plain-text MCP clients (curl, basic SDK wrappers) see it without having to parse the structured payload. Once the user completes the URL action, Bifrost stores the credential against the caller’s identity and the next tool call executes normally. Who can open and complete that URL depends on the flow’s identity mode (frozen when the URL is minted):

User-mode flows require the bound SSO user — anyone else opening the URL gets a 403. User-owned VKs auto-promote to user-mode.
VK-mode and session-mode flows are openable by anyone holding the URL. By default they still require a Bifrost dashboard session in the browser; turn on mcp_enable_temp_token_auth to let anonymous browsers complete them via a short-lived #t=<temp-token> URL fragment.

See Flow mode and access rules → for the full per-mode behavior.

Claude Code may proactively POST /register (RFC 7591 DCR) on claude mcp add and log SDK auth failed: …. Bifrost intentionally does not implement an OAuth stub for that probe; the /mcp connection itself works. See the Claude Code bug report for context.

See Per-User OAuth → and Per-User Headers → for the full flows and identity options, and MCP Sessions → for managing the resulting credentials.

Public URL configuration when behind a proxy

The URLs Bifrost surfaces (consent pages, header-submission pages, and the redirect_uri it registers with upstream OAuth providers) are derived from the request’s Host header by default. Behind a reverse proxy, that’s the proxy’s internal address rather than its public one. Override with:

mcp_external_client_url — what Bifrost registers as the redirect_uri with upstream OAuth providers

See Reverse Proxy configuration → for the full reference and examples.

Changing mcp_external_client_url breaks already-connected per-user OAuth clients. Upstream OAuth providers lock the redirect_uri to whatever was registered during Dynamic Client Registration (RFC 7591). If you change this URL afterwards, existing clients fail with “Invalid redirect URI” at the authorize step. To recover, clear the stored OAuth client credentials for the affected MCP server and re-authorize so Bifrost re-registers with the new URL.

Recommended: disable auto tool injection

When Bifrost serves both inbound LLM requests and acts as an upstream MCP server (this page), the same tools can end up being injected twice — once because the LLM Gateway auto-includes every configured MCP tool on every inference request, and once because the inbound MCP client itself fetched the tool list from /mcp. The model sees the same tool name from two sources and may behave erratically (duplicate tool calls, refusal, or confused arguments). Turn Disable Auto Tool Injection on in your client config. MCP tools will then only be attached to inference requests when the caller explicitly opts in via the x-bf-mcp-include-tools request header (and the calling Virtual Key still has to allow them). Outbound MCP clients (Claude Desktop, Cursor, etc.) keep working because they discover tools through /mcp directly.

Web UI
API
config.json

Navigate to Settings → MCP in the sidebar
Toggle Disable Auto Tool Injection on
Click Save

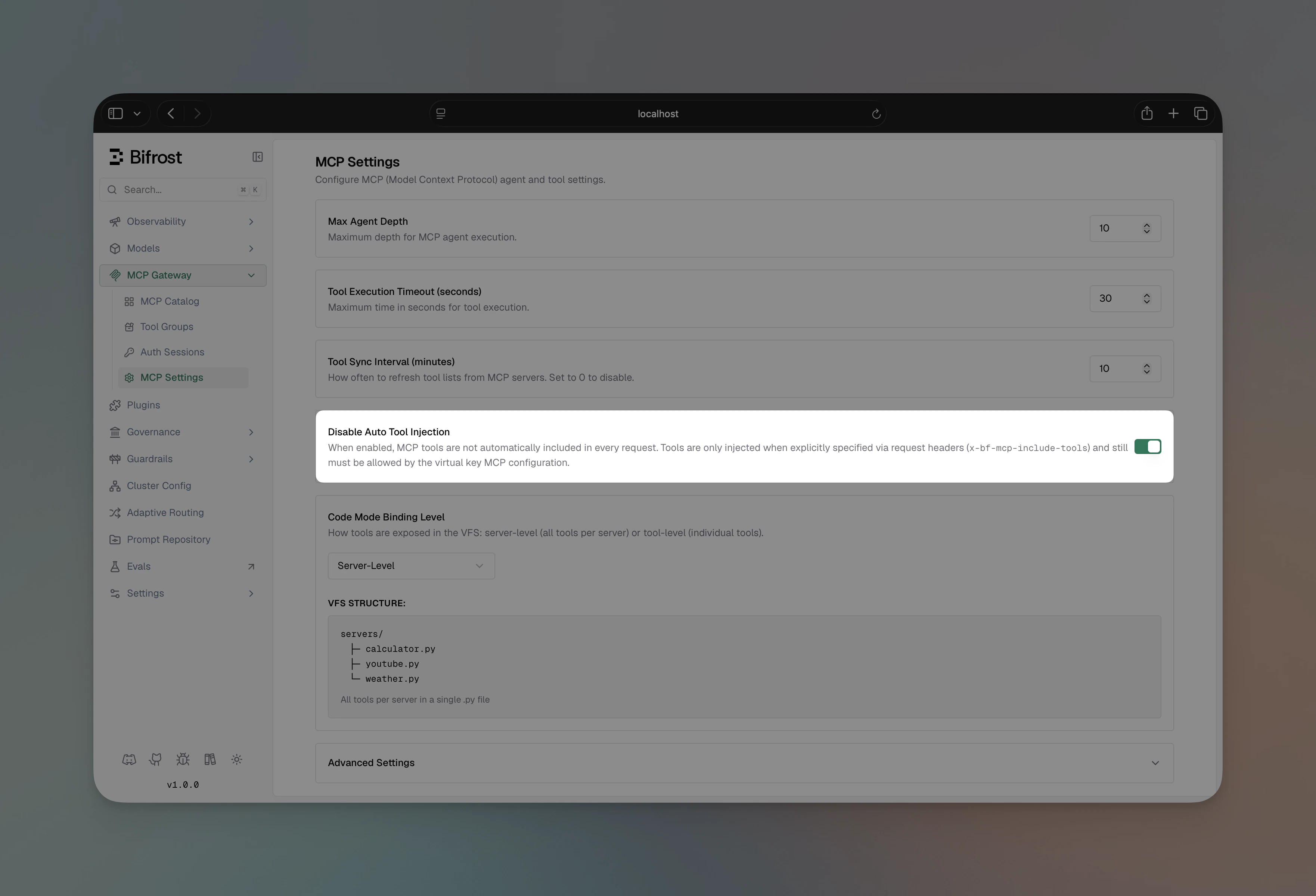

Settings → MCP panel with the Disable Auto Tool Injection toggle highlighted

curl -X PUT http://localhost:8080/api/config \
  -H "Content-Type: application/json" \
  -d '{
    "client_config": {
      "mcp_disable_auto_tool_inject": true
    }
  }'

PUT /api/config merges the supplied client_config into the existing one — other fields are unchanged.

{
  "client": {
    "mcp_disable_auto_tool_inject": true
  }
}

After flipping it on, callers that still want auto-injected tools on the inference path can opt in per-request:

curl -X POST http://localhost:8080/v1/chat/completions \
  -H "Content-Type: application/json" \
  -H "x-bf-mcp-include-tools: filesystem-*,github-create_issue" \
  -d '{ "model": "openai/gpt-4o", "messages": [...] }'

Security Considerations

The MCP Gateway exposes tools to external clients. Consider these security measures:

1. Enable Virtual Key Enforcement

Always enable enforce_auth_on_inference in production:

{
  "client": {
    "enforce_auth_on_inference": true
  }
}

This ensures all MCP requests require a valid Virtual Key.

2. Use HTTPS

Deploy Bifrost behind a reverse proxy (nginx, Cloudflare, etc.) with TLS enabled:

MCP Client → HTTPS → Reverse Proxy → HTTP → Bifrost Gateway

3. Limit Tool Access

Use Virtual Keys to limit which tools each client can access. Follow the principle of least privilege.

4. Network Restrictions

Consider network-level restrictions to limit which IPs can access the MCP endpoint.

Troubleshooting

No tools showing up

Verify MCP clients are connected in Bifrost
Check that tools_to_execute includes the expected tools
If using Virtual Keys, verify the VK has MCP tool access configured

Virtual Key authentication failing

Ensure the Virtual Key exists and is active
Check the header format (Bearer prefix for Authorization)
Verify enforce_auth_on_inference setting matches your setup

Next Steps

Tool Filtering

Control which tools are available per request

Virtual Key MCP Tools

Configure per-VK tool access
