Prerequisites

  • A running Keycloak server (self-hosted or cloud) with admin access to a realm
  • Bifrost Enterprise deployed and accessible
  • Your Bifrost callback URL: https://<your-bifrost-domain>/login

​
Step 1: Create an OIDC Client

1

Open the Clients list

In the Keycloak Admin Console, select your realm from the top-left dropdown.Go to Clients in the left nav and click Create client.

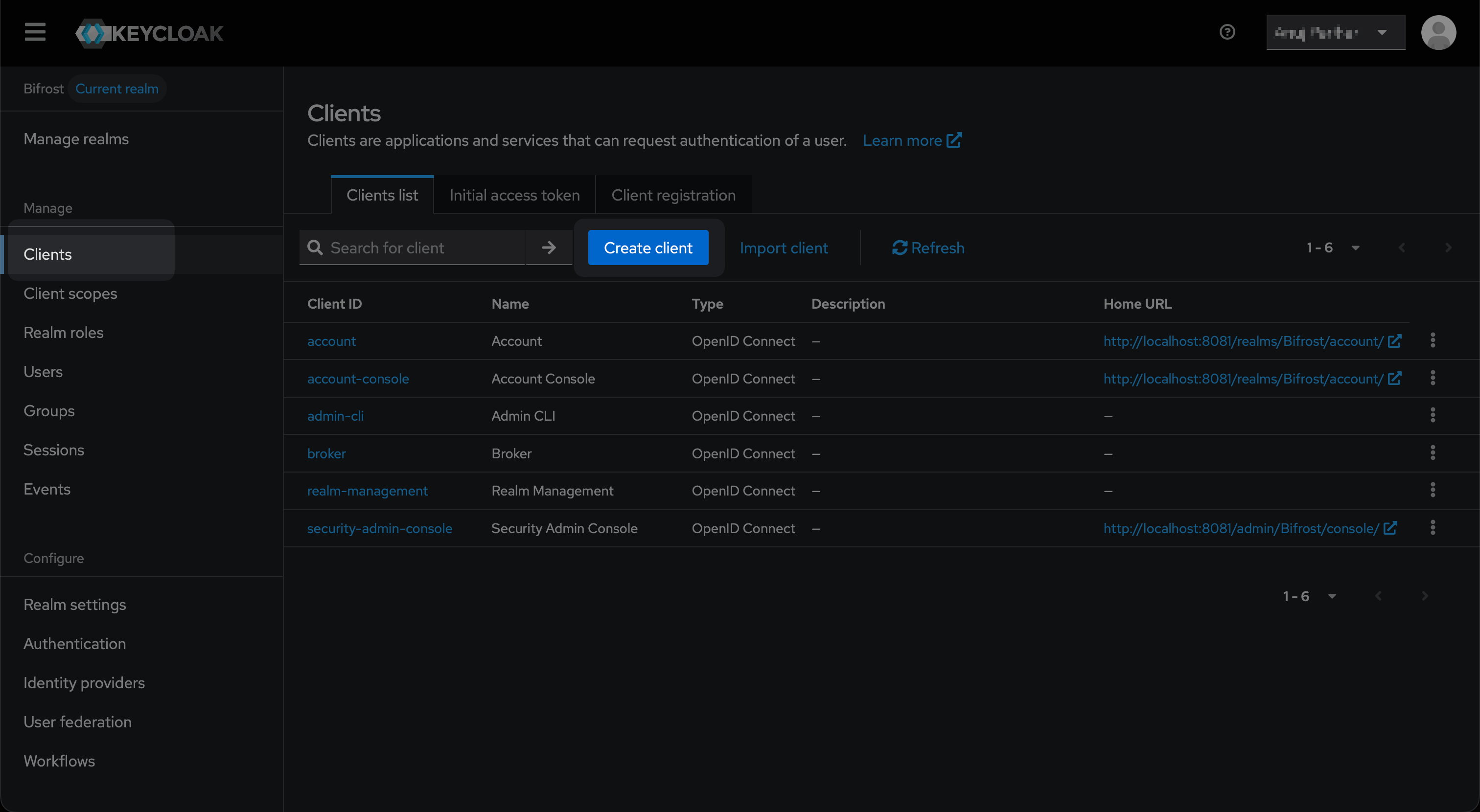

Keycloak Admin Console Clients list with Create client button highlighted
2

Fill in General settings

Set the following fields:
  • Client type: OpenID Connect
  • Client ID: bifrost-oidc (or any identifier you prefer)
  • Name: Bifrost
Click Next.

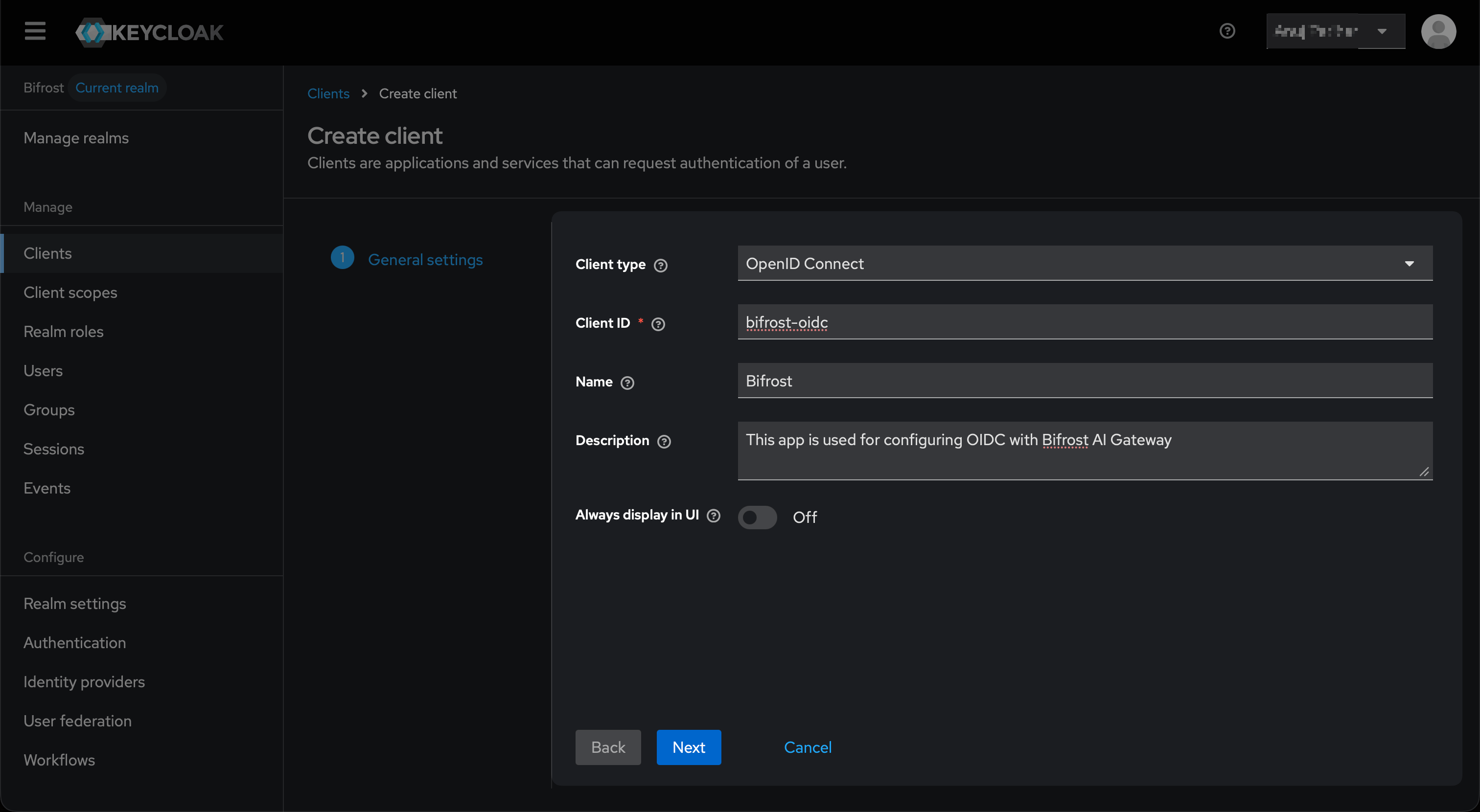

Keycloak Create client General settings form with Client type OpenID Connect, Client ID bifrost-oidc, and Name Bifrost
3

Configure Capability config

On the Capability config step, enable:
  • Client authentication — makes this a confidential client and generates a client secret
  • Standard flow — enables Authorization Code login
  • Service accounts roles — required for Bifrost to call the Keycloak Admin REST API for background user sync
Leave all other toggles at their defaults. Click Next.
4

Configure Login settings

Set your redirect URIs:
  • Root URL: https://<your-bifrost-domain>
  • Valid redirect URIs: https://<your-bifrost-domain>/login
Optionally, to use Discover Claims during setup, also add:
https://<your-bifrost-domain>/workspace/scim/oauth-discover-callback
Click Save.

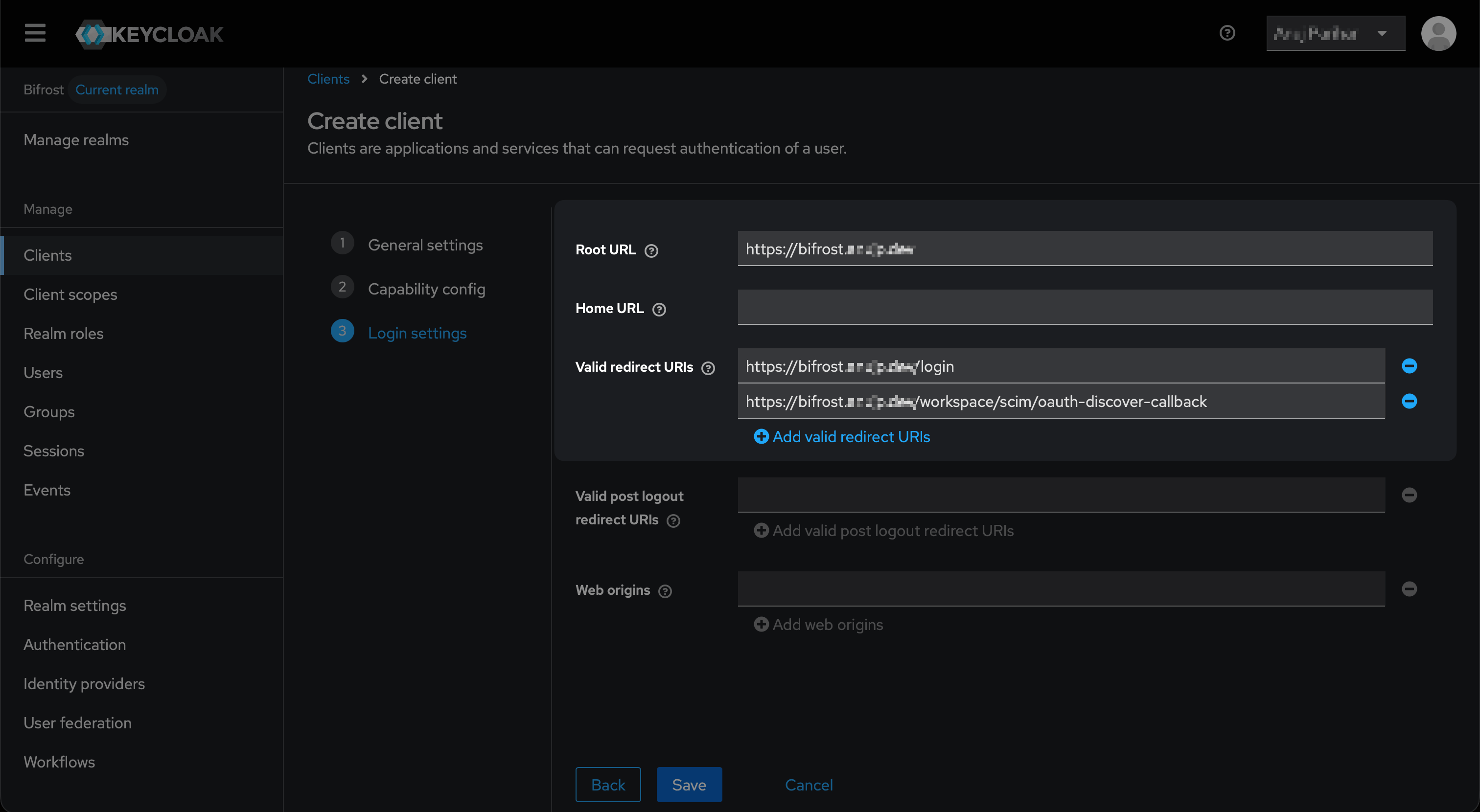

Keycloak Login settings form with Root URL, Valid redirect URIs showing the Bifrost login and oauth-discover-callback URLs
5

Grant Admin REST API permissions to the service account

The client is now saved. Open it and go to the Service accounts roles tab.Click Assign role, filter by realm-management, and assign:
RoleRequired
view-usersRequired — lets Bifrost list and import users
view-realmRecommended — enables group and role listing
query-groupsOptional — needed for group-based import filters
These permissions power the Sync Users from Keycloak import flow in Optional Next Steps.

​
Step 2: Copy Your Client Secret

1

Open the Credentials tab

Open the bifrost-oidc client and go to the Credentials tab.Copy the Client Secret — you will need it in Step 5.

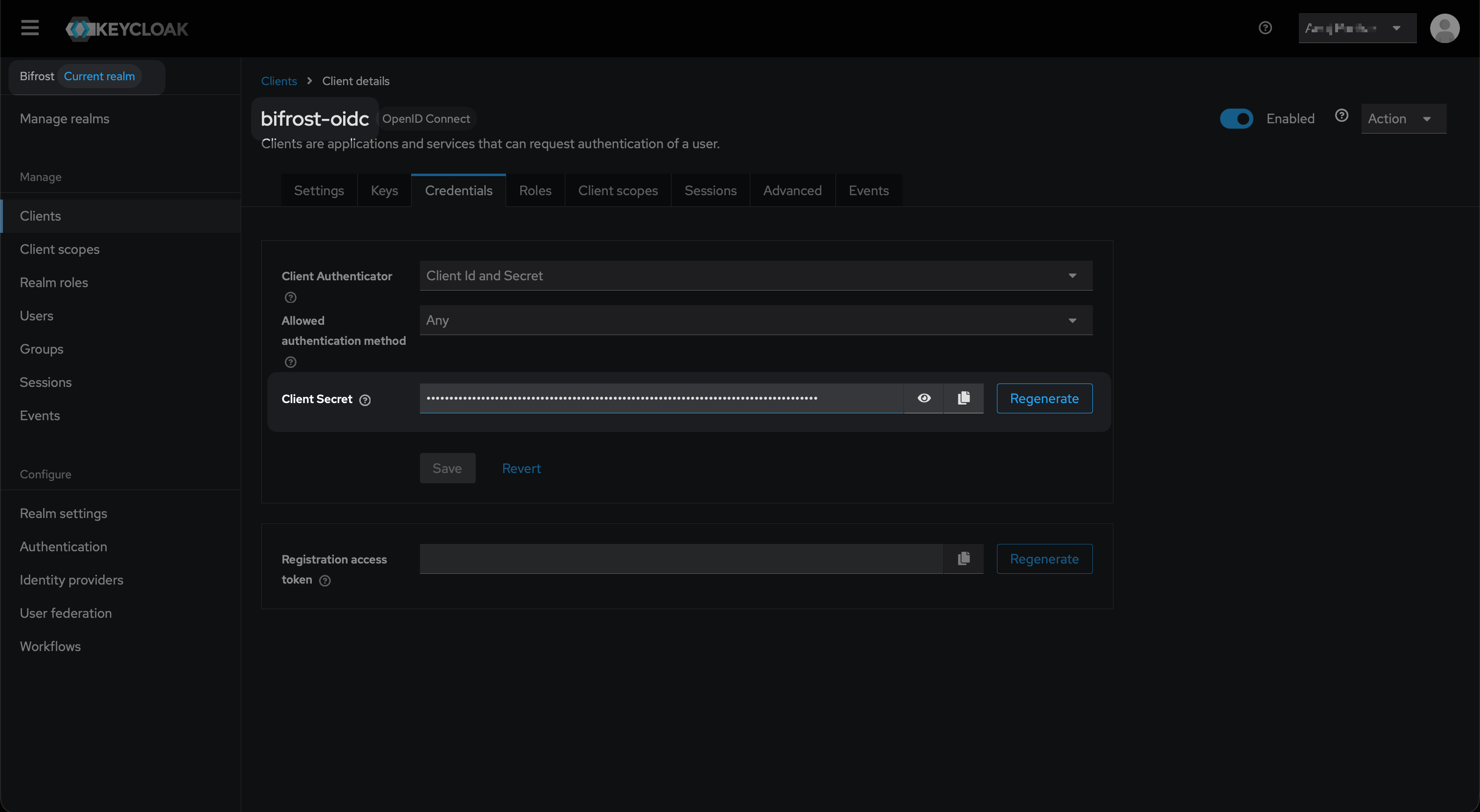

Keycloak Credentials tab showing Client Authenticator set to Client Id and Secret with the Client Secret field

​
Step 3: Configure Claim Mappers

Keycloak does not include realm roles or full group paths in tokens by default. Add two mappers to the client’s dedicated scope.
1

Open the dedicated scope

In the bifrost-oidc client, go to the Client scopes tab.Click on the bifrost-oidc-dedicated scope.

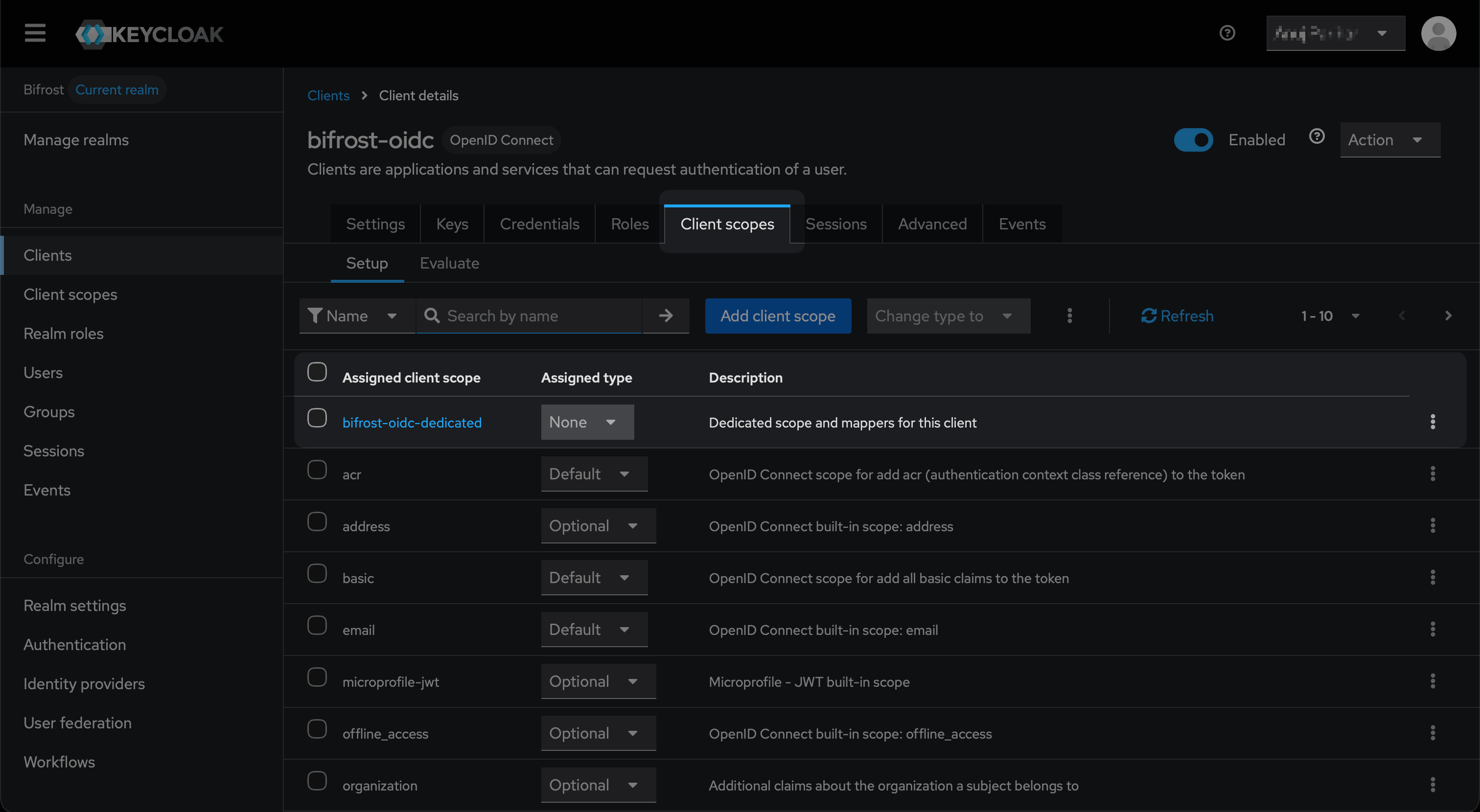

Keycloak Client scopes tab with bifrost-oidc-dedicated scope highlighted
2

Add the Group Membership mapper

Click Add mapper → By configuration.

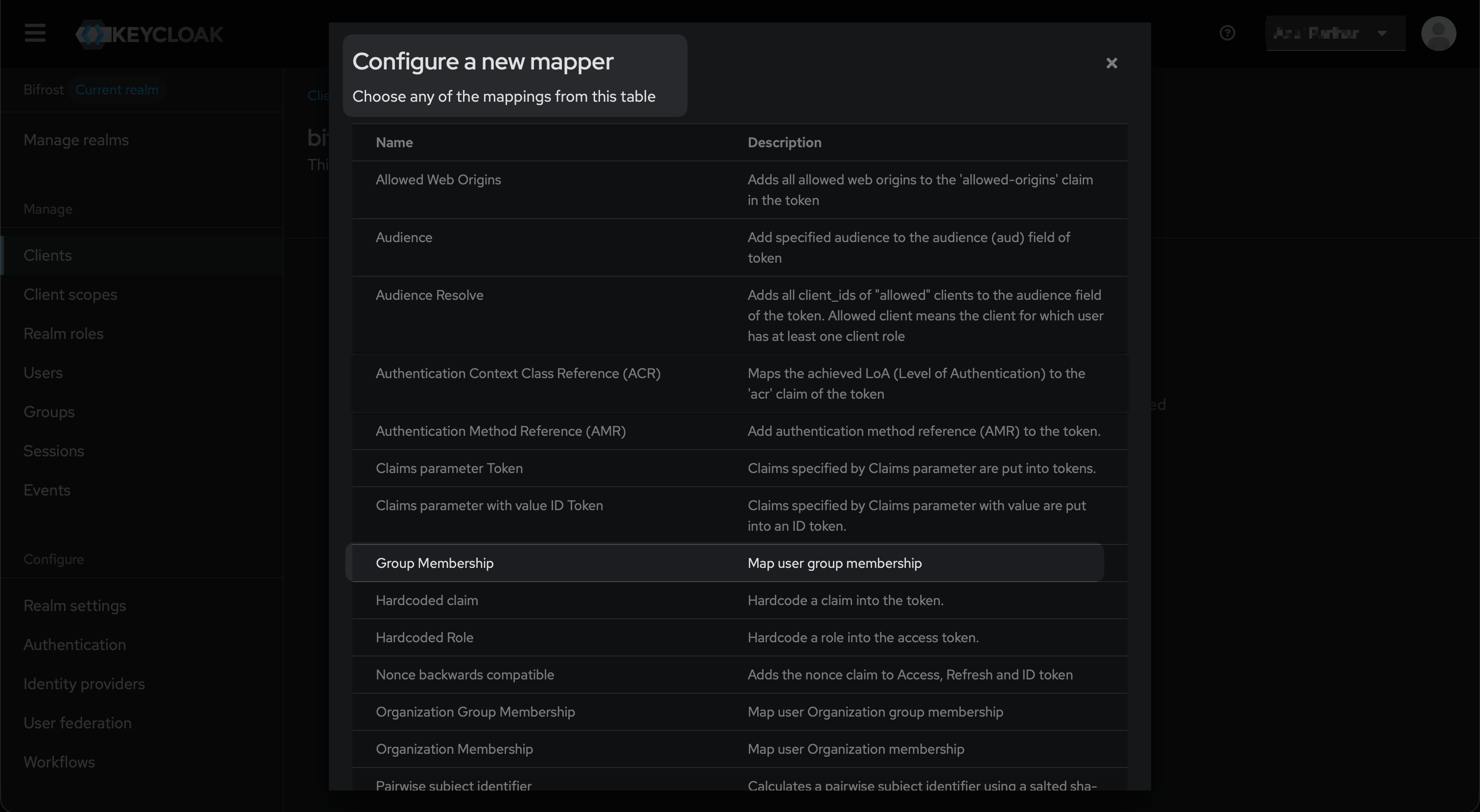

Keycloak Configure a new mapper dialog showing mapper type list with Group Membership visible
Select Group Membership and configure it:
FieldValue
NameGroups
Token Claim Namegroups
Full group pathOn
Add to ID tokenOn
Add to access tokenOn
Add to userinfoOn
Click Save.

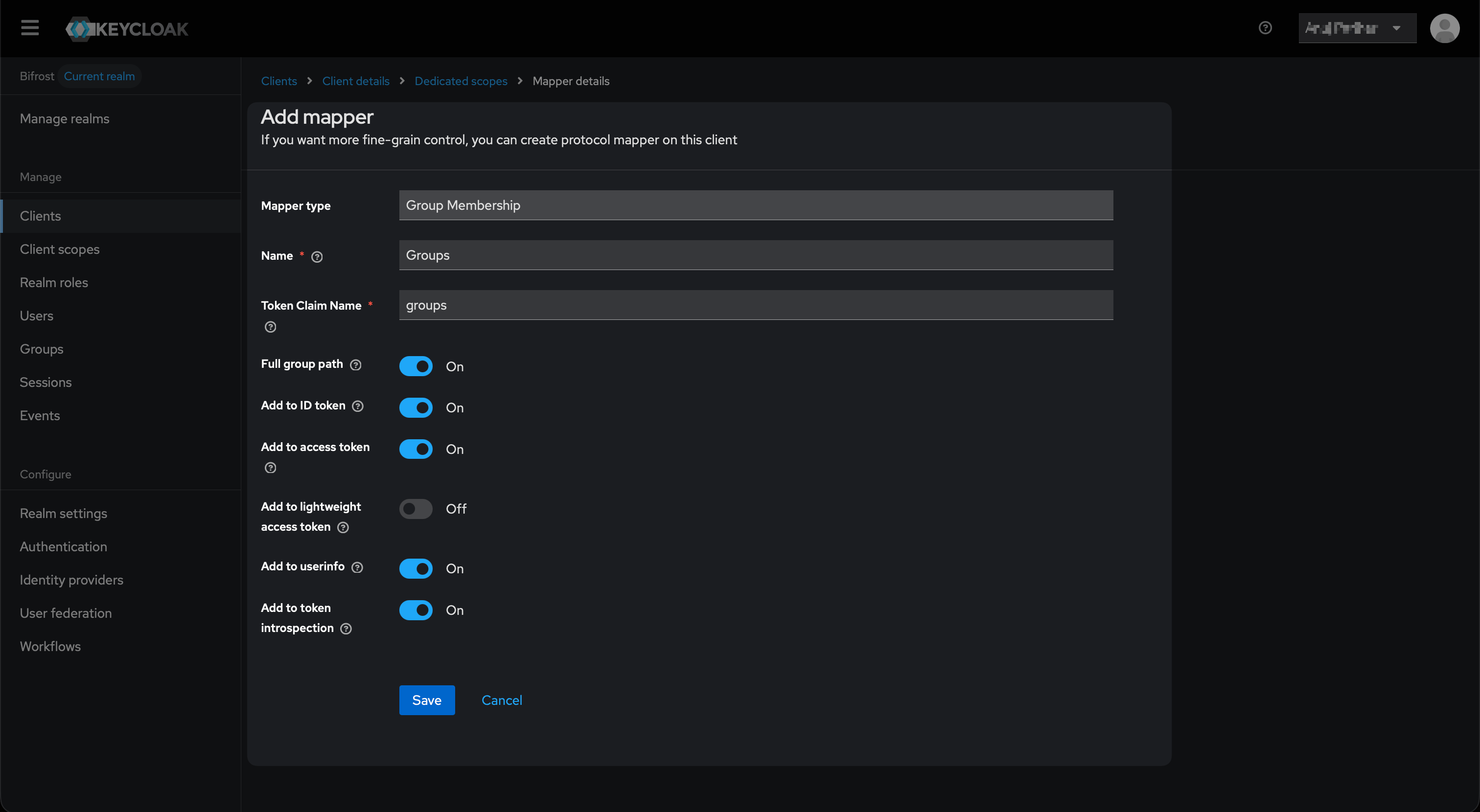

Group Membership mapper form with Name Groups, Token Claim Name groups, Full group path On, and all Add to token toggles On
Keep Full group path enabled. Keycloak sends groups as paths (e.g. /Engineering, /Platform). Bifrost’s /${*} wildcard in team mappings extracts the name after the slash automatically — see Step 5.
3

Add the User Realm Role mapper

Click Add mapper → By configuration again.Select User Realm Role from the list.

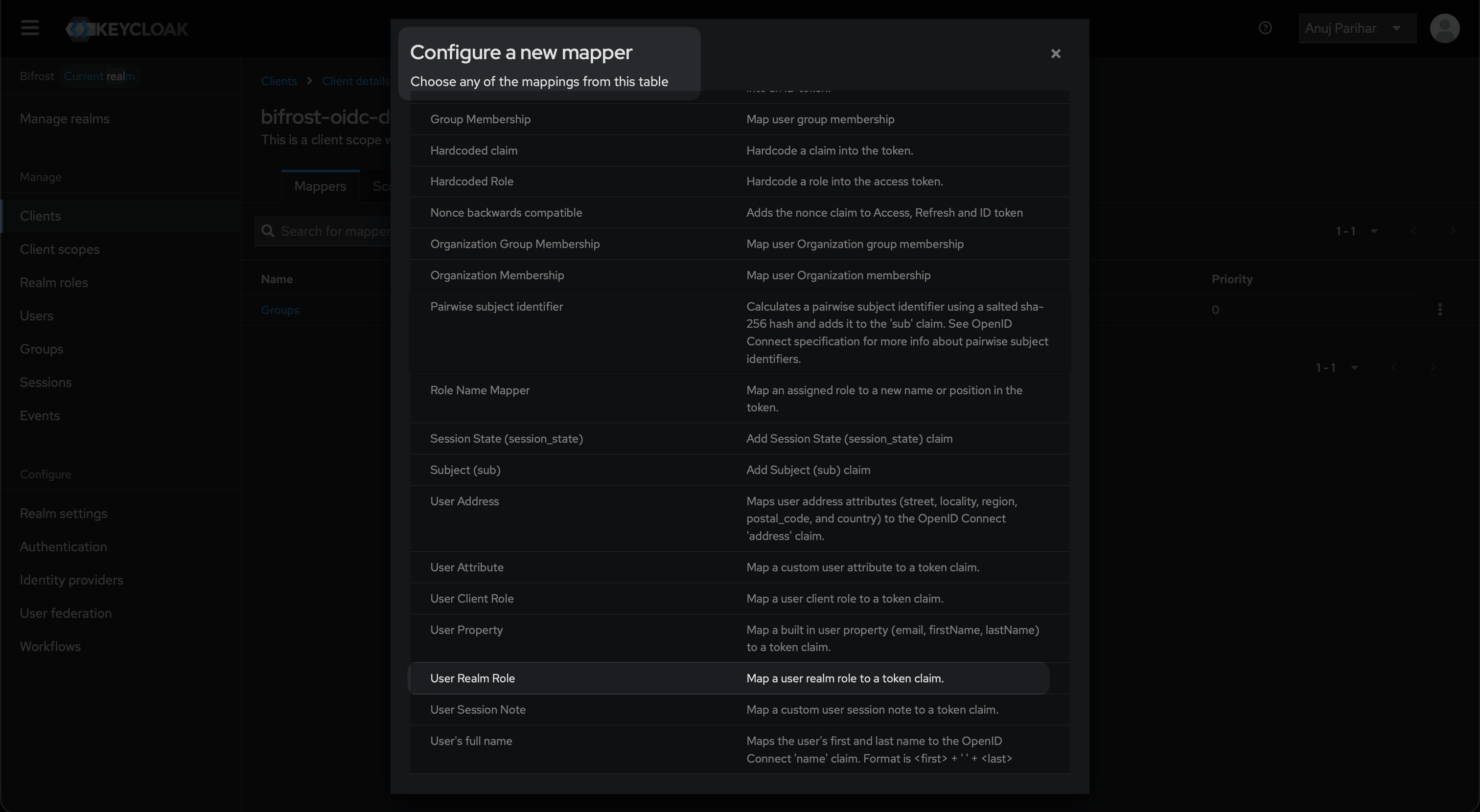

Keycloak Configure a new mapper dialog with User Realm Role option highlighted
Configure it:
FieldValue
Namerealm_roles
Token Claim Namerealm_access.roles
Claim JSON TypeString
MultivaluedOn
Add to ID tokenOn
Add to access tokenOn
Click Save.

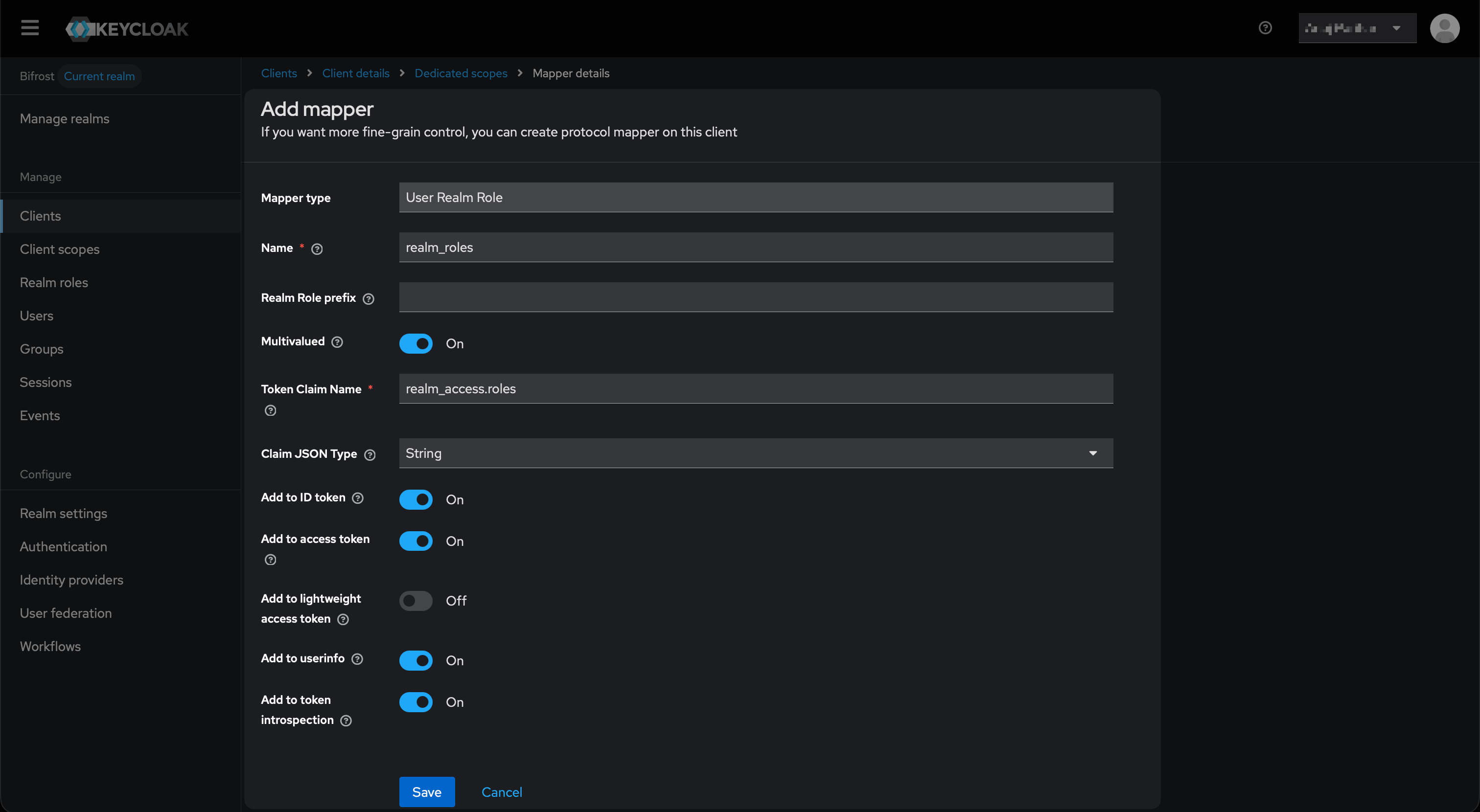

User Realm Role mapper form with Name realm_roles, Token Claim Name realm_access.roles, Multivalued On, and Add to ID and access token enabled

​
Step 4: Assign Users

In Keycloak, users need to be assigned to the realm roles and groups you plan to map in Bifrost.
  • Go to Users → select a user → Role mapping tab → assign the relevant realm roles (e.g. realm-admin, bifrost-viewer)
  • Go to Users → select a user → Groups tab → join the relevant groups (e.g. /Engineering, /Platform)

​
Step 5: Configure Bifrost

1

Open User Provisioning and choose Keycloak

In your Bifrost dashboard, go to Governance → User Provisioning.Select Keycloak as the identity provider and click Next.

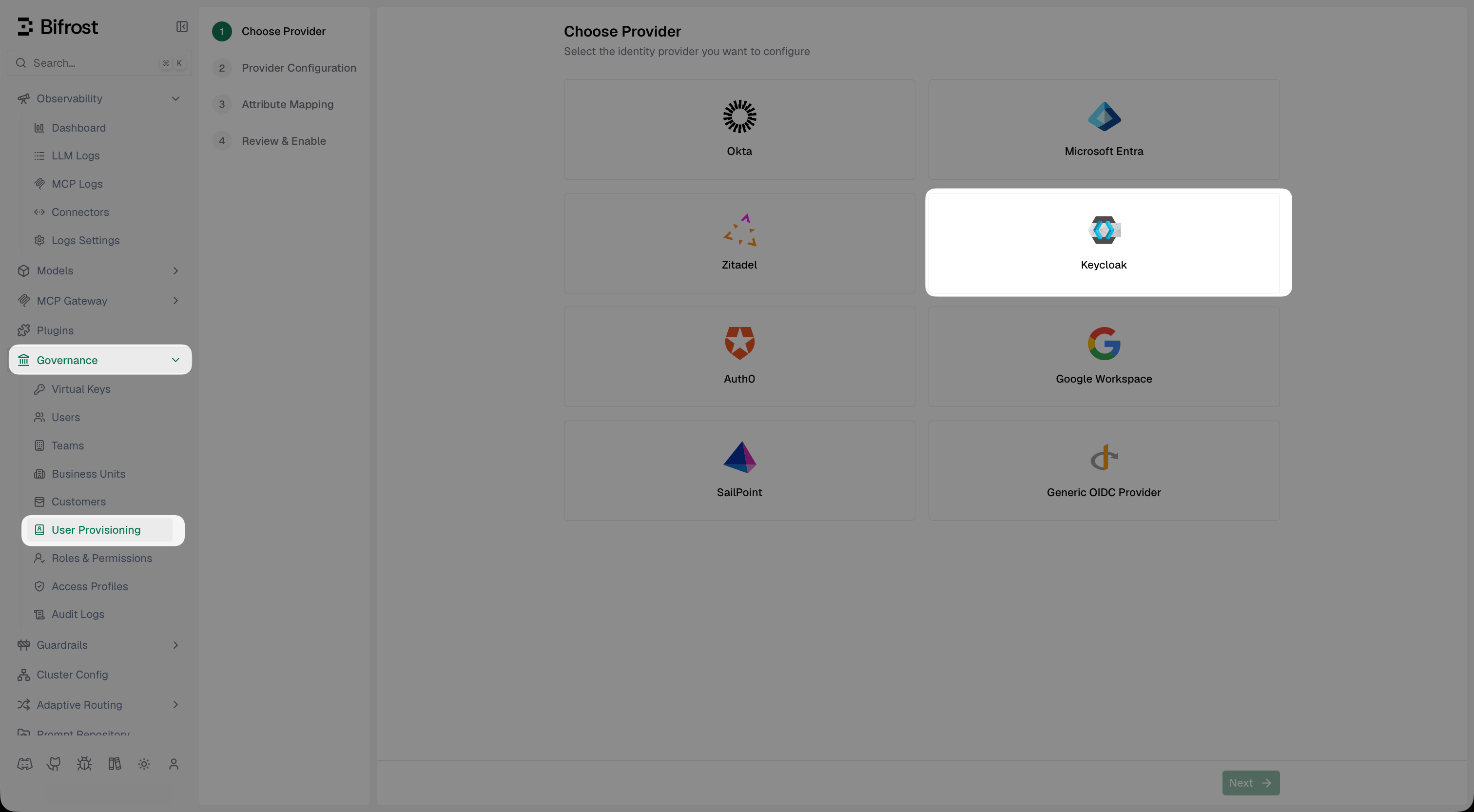

Bifrost Choose Provider screen with Keycloak card selected
2

Fill in the provider configuration

Enter the details from the previous steps:
  • Server URL: your Keycloak base URL — no /realms/... suffix (e.g. https://keycloak.company.com)
  • Realm: your realm name (e.g. Bifrost)
  • Client ID: the client ID you set in Step 1 (e.g. bifrost-oidc)
  • Client Secret: copied from Step 2
  • Audience: optional — leave blank to default to the Client ID
  • Team IDs Field (Optional): leave as groups to match the mapper you created in Step 3
Click Verify & Next to confirm the connection.

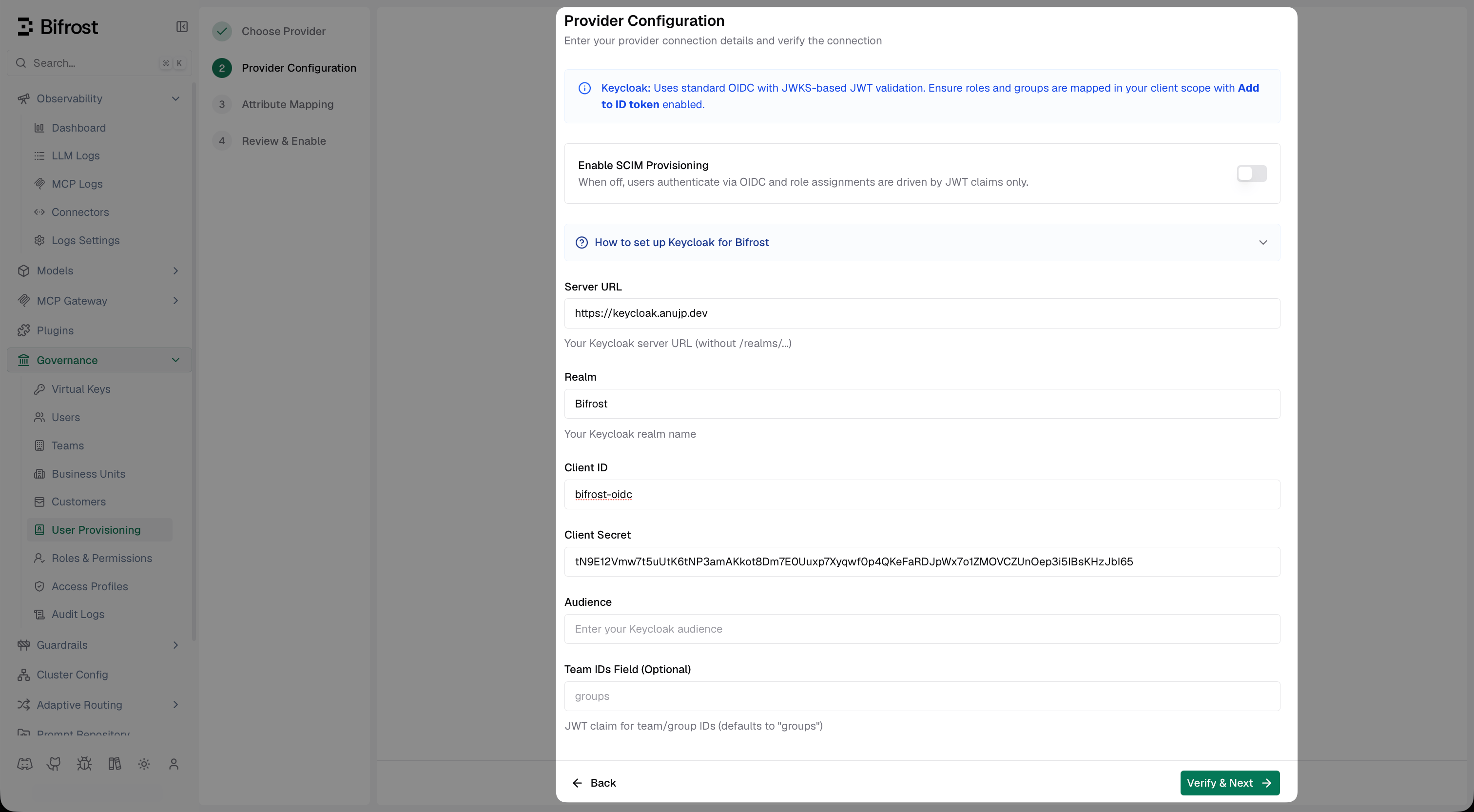

Bifrost Provider Configuration form for Keycloak with Server URL, Realm, Client ID, Client Secret, and Team IDs Field filled in
3

Discover claims

On the Attribute Mapping screen, click Discover Claims.Bifrost opens a sign-in popup with your Keycloak realm — no session is created.Once you authenticate, it returns the exact claims your Keycloak tenant is sending in the JWT. Confirm that groups and realm_access.roles appear before building your mappings.

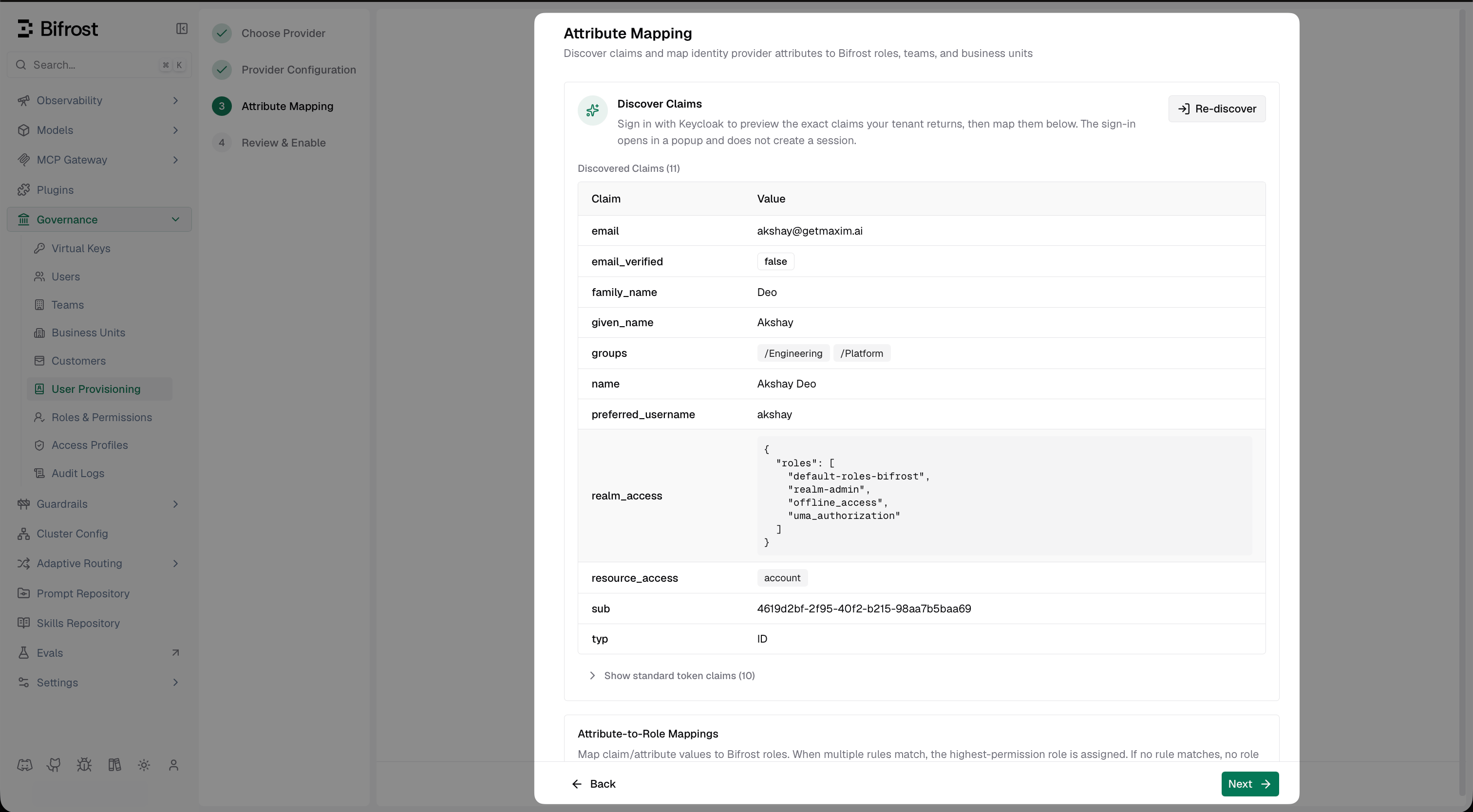

Bifrost Discover Claims screen showing claims including email, groups with /Engineering and /Platform paths, and realm_access with roles array
4

Set up attribute mappings

Use the sections below the claim list to map Keycloak claim values to Bifrost roles, teams, and business units.Attribute-to-Role MappingsMap a claim value to a Bifrost role.
  • All matching rules are evaluated — if multiple rules match, the role with the highest permissions is assigned
  • If no rule matches, the user is not assigned a role and login is denied
Example: map realm_access.roles → realm-admin → Admin, and realm_access.roles → bifrost-viewer → Viewer.Attribute-to-Team MappingsMap a claim value to a Bifrost team. All matching rules apply. Three value formats work:
  • Exact value — e.g. /Engineering maps that specific group to a fixed team name
  • * — syncs the claim value directly as the team name
  • /${*} — extracts the group name from Keycloak’s full group path — e.g. /${*} matches /Engineering and creates team Engineering, and matches /Platform and creates team Platform
Attribute-to-Business Unit MappingsSame wildcard support as team mappings. Three value formats work:
  • Exact value — maps a specific claim value to a fixed business unit name
  • * — syncs the claim value directly as the business unit name
  • /${*} — extracts the group name from Keycloak’s full group path, same as team mappings (e.g. /${*} on /Engineering → business unit Engineering)
  • When a rule matches, the resolved business unit is assigned to all of that user’s teams
  • Manually assigned teams are left unchanged

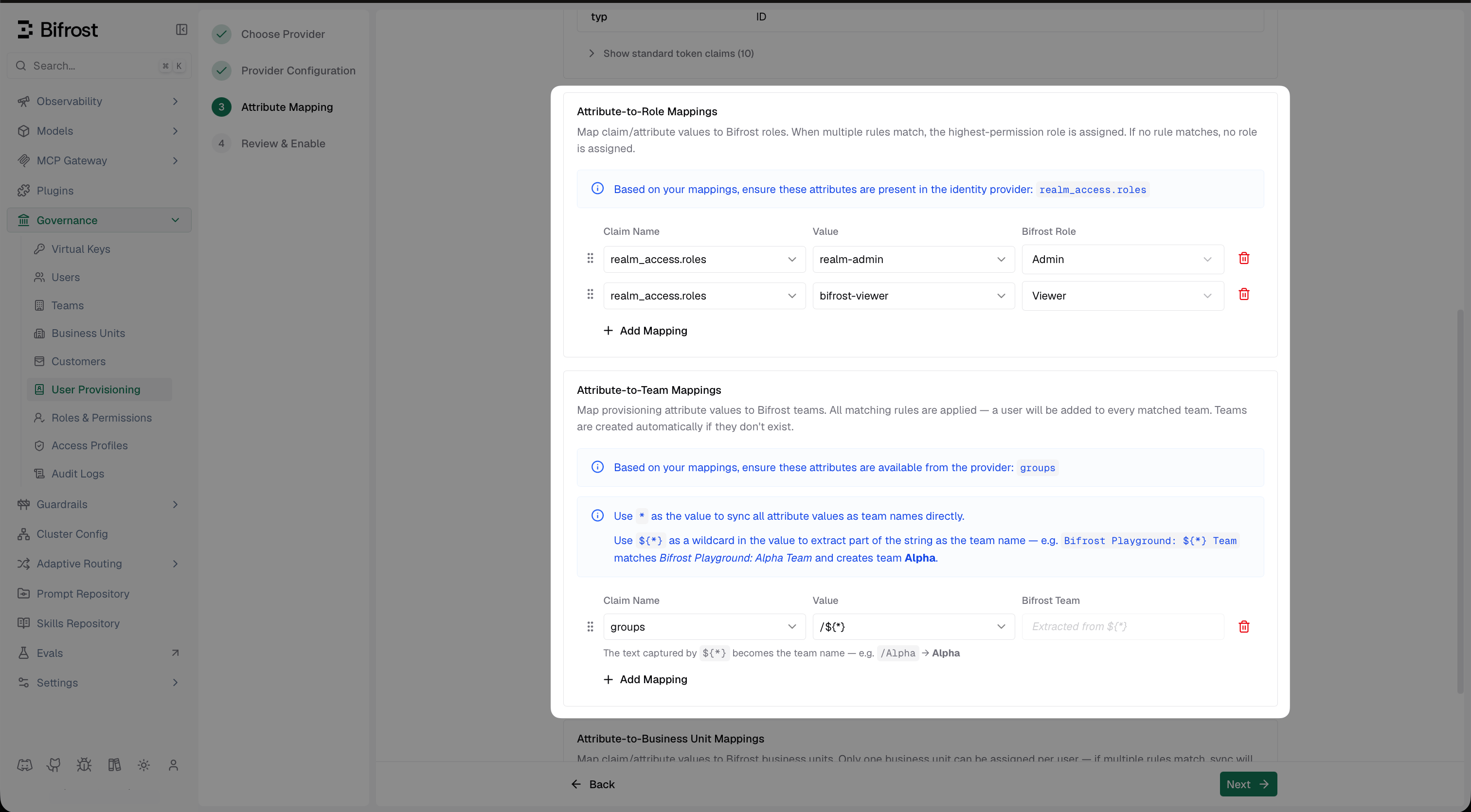

Bifrost Attribute Mapping screen showing realm_access.roles mapped to Admin and Viewer roles, and groups mapped with /${*} wildcard to extract team names
Click Next when done.
5

Review and enable

Review your configuration on the final screen and click Enable.
Restart your Bifrost server after enabling for the changes to take effect.

​
Optional Next Steps

Import users from Keycloak — once SSO is configured, you can bulk-import users from Keycloak into Bifrost without waiting for each user to log in. Go to Governance → Users → Sync Users from Keycloak and filter by group or realm role to preview and import matching users.

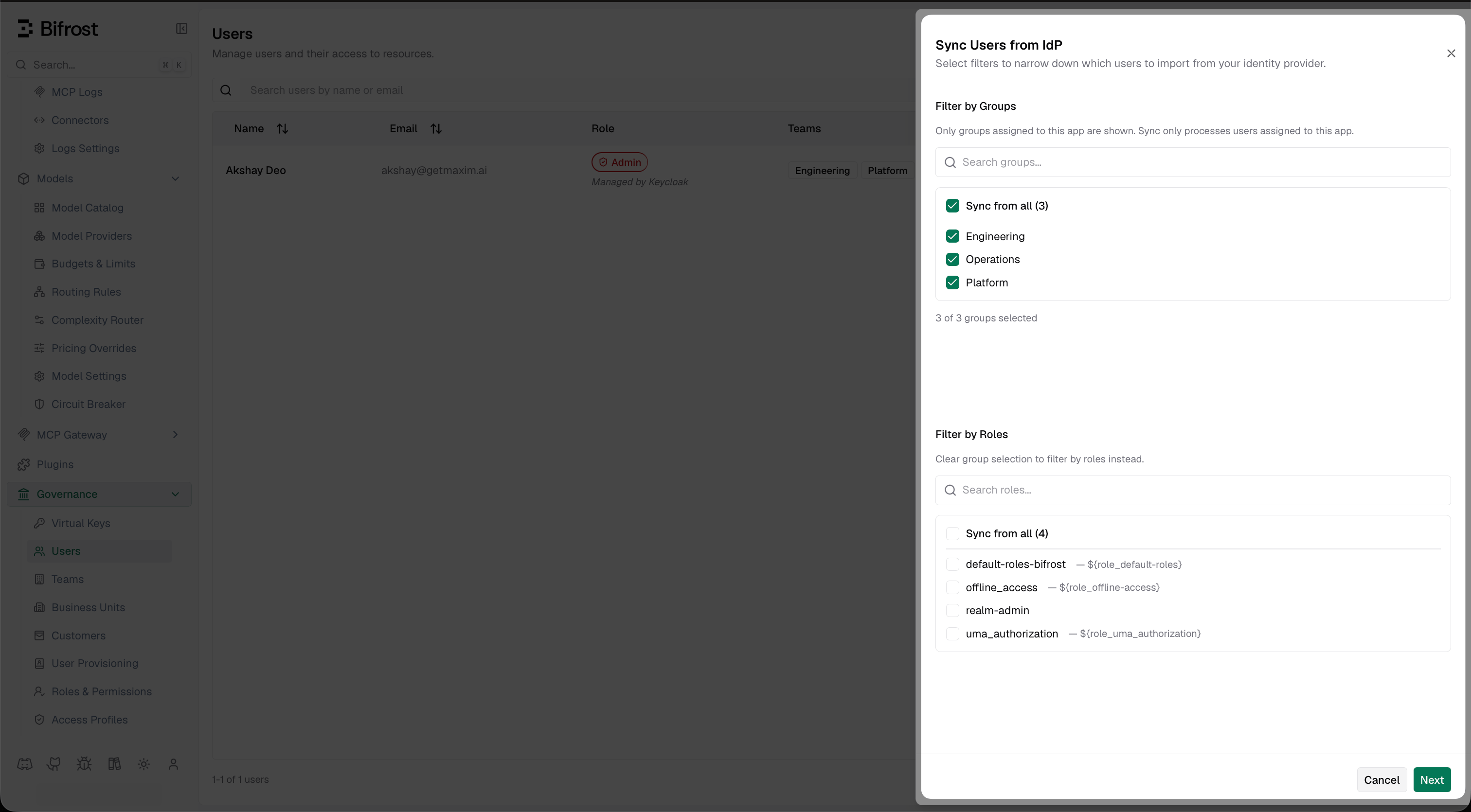

Sync Users from IdP dialog showing Filter by Groups with Engineering, Operations, and Platform checkboxes, and Filter by Roles section
Imported users appear in Governance → Users with their role and team assignments applied immediately.

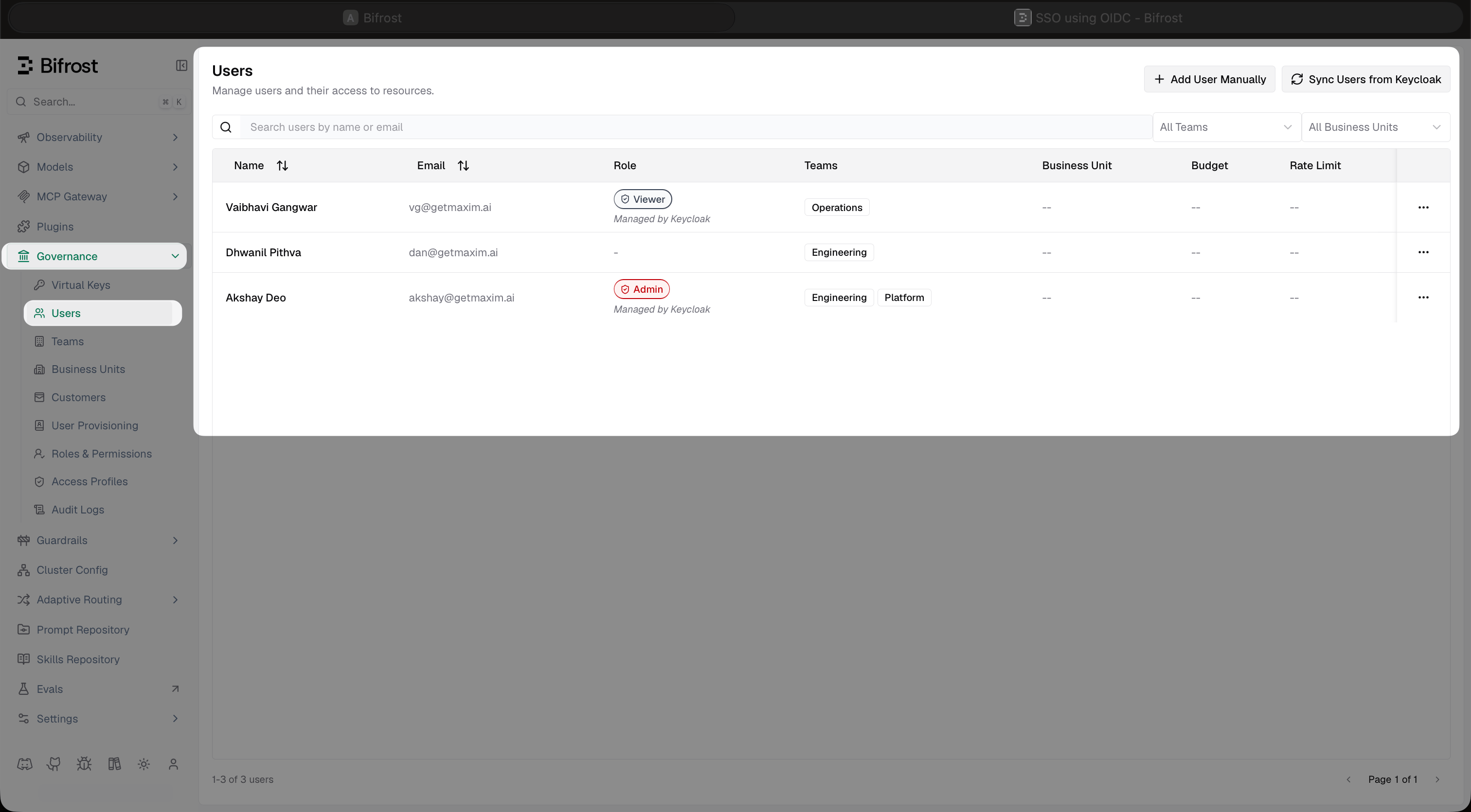

Bifrost Users page showing a user with Admin role and Engineering and Platform teams, marked Managed by Keycloak

​
Troubleshooting

serverUrl must not include /realms/{realm} — the Server URL field takes the base Keycloak URL only. Set the realm separately in the Realm field. Example: https://keycloak.company.com + Realm Bifrost — not https://keycloak.company.com/realms/Bifrost. Users are redirected back to login — confirm the client’s Valid redirect URIs exactly match your Bifrost login URL (trailing slash matters). Verify the client is Enabled in Keycloak. Roles not appearing in the token — check that the User Realm Role mapper adds to both ID and access tokens. Use Evaluate on the client scope in Keycloak to preview the token a specific user would receive. Groups not appearing in the token — verify the Group Membership mapper has Full group path enabled and is added to ID token, access token, and userinfo. jwks keys not found — confirm the Server URL is reachable from Bifrost. The JWKS endpoint is {serverUrl}/realms/{realm}/protocol/openid-connect/certs.
