Virtual Keys

Overview

Virtual Keys are the primary governance entity in Bifrost. Users and applications authenticate using the given headers to access virtual keys and get specific access permissions, budgets, and rate limits. Allowed Headers:

x-bf-vk - Virtual key header, eg. sk-bf-*
Authorization - Authorization header, eg. Bearer sk-bf-* (OpenAI style)
x-api-key - API key header, eg. sk-bf-* (Anthropic style)
x-goog-api-key - API key header, eg. sk-bf-* (Google Gemini style)

Old virtual keys(without sk-bf-* prefix) are only supported by x-bf-vk header.

You can also use Authorization, x-api-key and x-goog-api-key headers to pass direct keys to the provider. Read more about it in Direct Key Bypass.

Key Features:

Access Control - Model and provider filtering
Cost Management - Independent budgets (checked along with team/customer budgets if attached)
Rate Limiting - Token and request-based throttling (VK-level only)
Key Restrictions - Limit VK to specific provider API keys (if configured, VK can only use those keys)
Exclusive Attachment - Belongs to either one team OR one customer OR neither (mutually exclusive)
Active/Inactive Status - Enable/disable access instantly

Configuration

Web UI
API
config.json

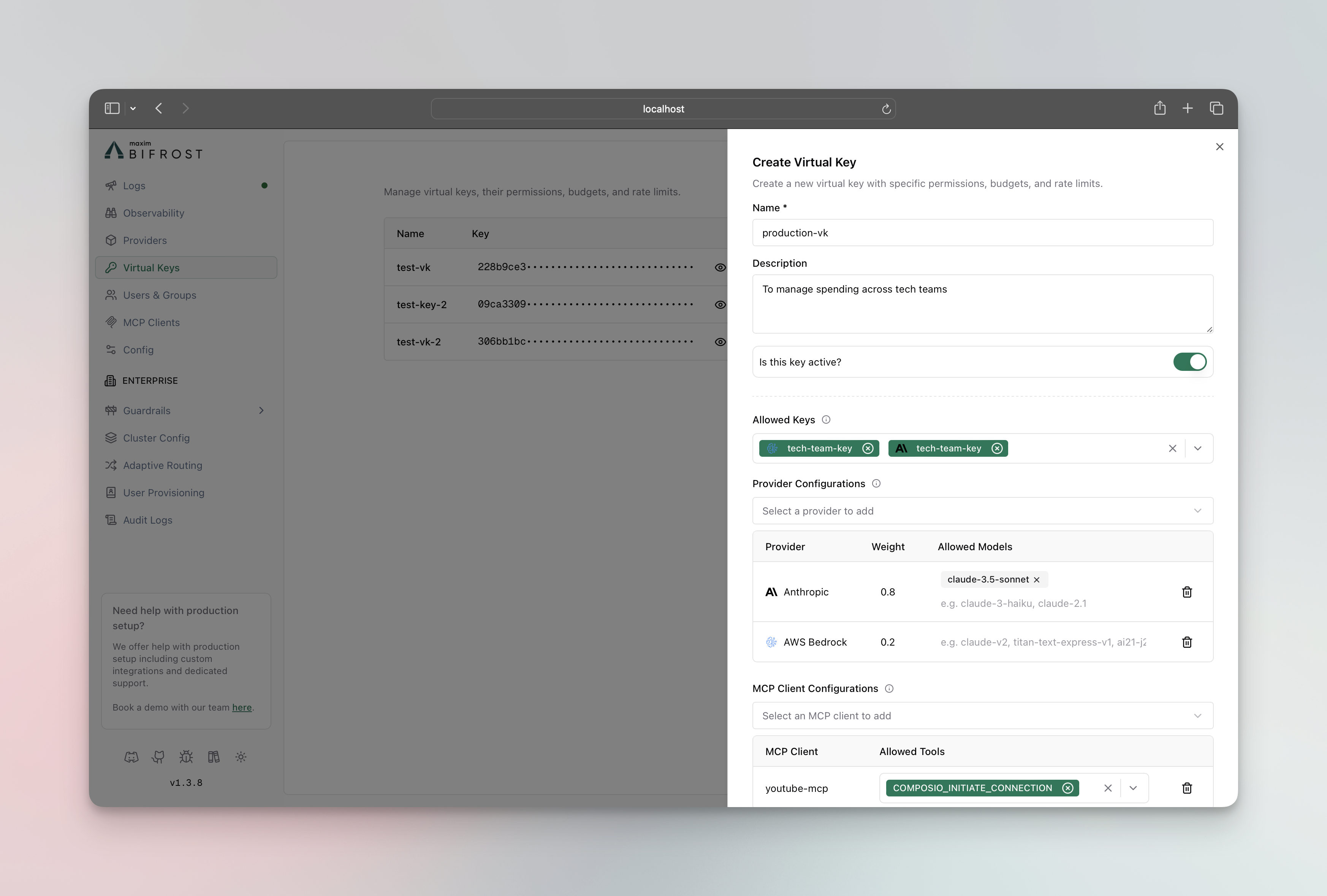

Go to Virtual Keys
Click on Add Virtual Key button

Budget Settings:

Max Limit: Dollar amount (e.g., 10.50)
Reset Duration: 1m, 1h, 1d, 1w, 1M

Rate Limits:

Token Limit: Max tokens per period
Request Limit: Max requests per period
Reset Duration: Reset frequency for each limit

Associations:

Team: Assign to existing team (mutually exclusive with customer)
Customer: Assign to existing customer (mutually exclusive with team)

Click Create Virtual Key

Create Virtual Key (attached to team):

curl -X POST http://localhost:8080/api/governance/virtual-keys \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Engineering Team API",
    "description": "Main API key for engineering team",
    "provider_configs": [
      {
        "provider": "openai",
        "weight": 0.5,
        "allowed_models": ["gpt-4o-mini"]
      },
      {
        "provider": "anthropic",
        "weight": 0.5,
        "allowed_models": ["claude-3-sonnet-20240229"]
      }
    ],
    "team_id": "team-eng-001",
    "budget": {
      "max_limit": 100.00,
      "reset_duration": "1M"
    },
    "rate_limit": {
      "token_max_limit": 10000,
      "token_reset_duration": "1h",
      "request_max_limit": 100,
      "request_reset_duration": "1m"
    },
    "key_ids": ["8c52039e-38c6-48b2-8016-0bd884b7befb"],
    "is_active": true
  }'

Create Virtual Key (directly attached to customer):

curl -X POST http://localhost:8080/api/governance/virtual-keys \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Executive API Key",
    "description": "Direct customer-level API access",
    "provider_configs": [
      {
        "provider": "openai",
        "weight": 0.5,
        "allowed_models": ["gpt-4o"]
      },
      {
        "provider": "anthropic",
        "weight": 0.5,
        "allowed_models": ["claude-3-opus-20240229"]
      }
    ],
    "customer_id": "customer-acme-corp",
    "budget": {
      "max_limit": 500.00,
      "reset_duration": "1M"
    },
    "is_active": true
  }'

Note:

team_id and customer_id are mutually exclusive - a VK can only belong to one team OR one customer, not both.

key_ids restricts the VK to only use those specific provider API keys. Omit this field to allow access to all available keys.

Update Virtual Key:

curl -X PUT http://localhost:8080/api/governance/virtual-keys/{vk_id} \
  -H "Content-Type: application/json" \
  -d '{
    "description": "Updated description",
    "budget": {
      "max_limit": 150.00,
      "reset_duration": "1M"
    }
  }'

Get Virtual Keys:

# List all virtual keys
curl http://localhost:8080/api/governance/virtual-keys

# Get specific virtual key
curl http://localhost:8080/api/governance/virtual-keys/{vk_id}

Delete Virtual Key:

curl -X DELETE http://localhost:8080/api/governance/virtual-keys/{vk_id}

{
  "client": {
    "enable_governance": true,
    "enforce_governance_header": true
  },
  "governance": {
    "virtual_keys": [
      {
        "id": "vk-001",
        "name": "Engineering Team API",
        "value": "vk-engineering-main",
        "description": "Main API key for engineering team",
        "is_active": true,
        "provider_configs": [
          {
            "provider": "openai",
            "weight": 0.5,
            "allowed_models": ["gpt-4o-mini"]
          },
          {
            "provider": "anthropic",
            "weight": 0.5,
            "allowed_models": ["claude-3-sonnet-20240229"]
          }
        ],
        "team_id": "team-eng-001",
        "budget_id": "budget-eng-vk",
        "rate_limit_id": "rate-limit-eng-vk",
        "keys": [
          {"key_id": "8c52039e-38c6-48b2-8016-0bd884b7befb"}
        ]
      },
      {
        "id": "vk-002",
        "name": "Executive API Key",
        "value": "vk-executive-direct",
        "description": "Direct customer-level API access",
        "is_active": true,
        "provider_configs": [
          {
            "provider": "openai",
            "weight": 0.5,
            "allowed_models": ["gpt-4o"]
          },
          {
            "provider": "anthropic",
            "weight": 0.5,
            "allowed_models": ["claude-3-opus-20240229"]
          }
        ],
        "customer_id": "customer-acme-corp",
        "budget_id": "budget-exec-vk",
        "keys": [
          {"key_id": "8c52039e-38c6-48b2-8016-0bd884b7befb"}
        ]
      }
    ],
    "budgets": [
      {
        "id": "budget-eng-vk",
        "max_limit": 100.00,
        "reset_duration": "1M",
        "current_usage": 0.0,
        "last_reset": "2025-01-01T00:00:00Z"
      },
      {
        "id": "budget-exec-vk",
        "max_limit": 500.00,
        "reset_duration": "1M",
        "current_usage": 0.0,
        "last_reset": "2025-01-01T00:00:00Z"
      }
    ],
    "rate_limits": [
      {
        "id": "rate-limit-eng-vk",
        "token_max_limit": 10000,
        "token_reset_duration": "1h",
        "token_current_usage": 0,
        "token_last_reset": "2025-01-01T00:00:00Z",
        "request_max_limit": 100,
        "request_reset_duration": "1m",
        "request_current_usage": 0,
        "request_last_reset": "2025-01-01T00:00:00Z"
      }
    ]
  }
}

User Groups

Teams

Teams provide organizational grouping for virtual keys with department-level budget management. Teams can belong to one customer and have their own independent budget allocation. Key Features:

Organizational Structure - Group multiple virtual keys
Independent Budgets - Department-level cost control (separate from customer budgets)
Customer Association - Can belong to one customer (optional)
No Rate Limits - Teams cannot have rate limits (VK-level only)

Configuration

Web UI
API
config.json

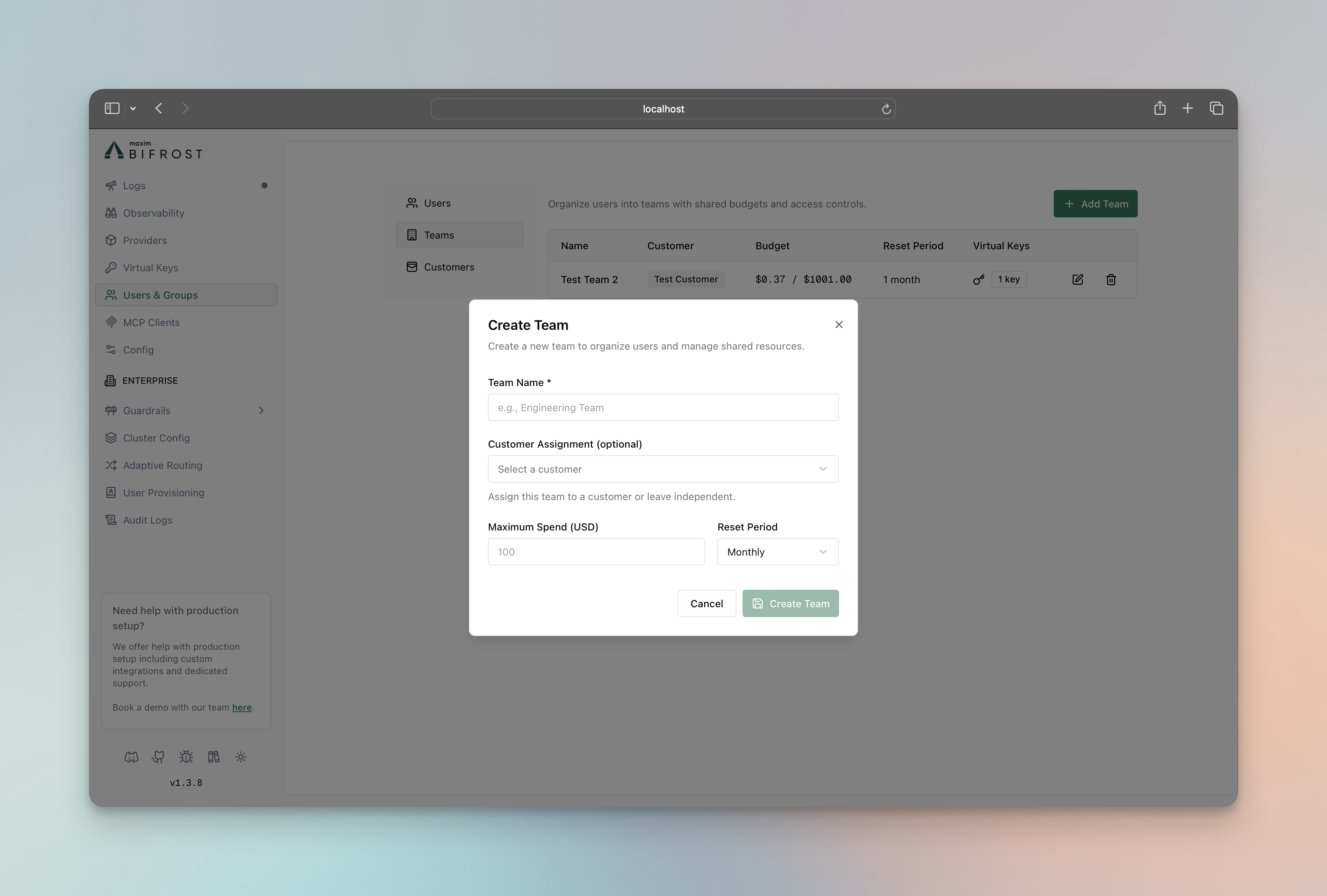

Go to Users & Groups → Teams
Click on Add Team button

Fill the form and click on Create Team button

Assign Virtual Keys to Team
- Go to Virtual Keys page
- Edit the virtual key and assign it to the team
- Click on Save button

Create Team:

curl -X POST http://localhost:8080/api/governance/teams \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Engineering Team",
    "customer_id": "customer-acme-corp",
    "budget": {
      "max_limit": 500.00,
      "reset_duration": "1M"
    }
  }'

Update Team:

curl -X PUT http://localhost:8080/api/governance/teams/{team_id} \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Updated Engineering Team",
    "budget": {
      "max_limit": 750.00,
      "reset_duration": "1M"
    }
  }'

Get Teams:

# List all teams
curl http://localhost:8080/api/governance/teams

# Get specific team
curl http://localhost:8080/api/governance/teams/{team_id}

Delete Team:

curl -X DELETE http://localhost:8080/api/governance/teams/{team_id}

{
  "governance": {
    "teams": [
      {
        "id": "team-eng-001",
        "name": "Engineering Team",
        "customer_id": "customer-acme-corp",
        "budget_id": "budget-team-eng"
      },
      {
        "id": "team-sales-001",
        "name": "Sales Team",
        "customer_id": "customer-acme-corp",
        "budget_id": "budget-team-sales"
      }
    ],
    "budgets": [
      {
        "id": "budget-team-eng",
        "max_limit": 500.00,
        "reset_duration": "1M",
        "current_usage": 0.0,
        "last_reset": "2025-01-01T00:00:00Z"
      },
      {
        "id": "budget-team-sales",
        "max_limit": 250.00,
        "reset_duration": "1M",
        "current_usage": 0.0,
        "last_reset": "2025-01-01T00:00:00Z"
      }
    ]
  }
}

Customers

Customers represent the highest level in the governance hierarchy, typically corresponding to organizations or major business units. They provide top-level budget control and organizational structure. Key Features:

Top-Level Organization - Highest hierarchy level
Independent Budgets - Organization-wide cost control (separate from team/VK budgets)
Team Management - Contains multiple teams and direct VKs
No Rate Limits - Customers cannot have rate limits (VK-level only)

Configuration

Web UI
API
config.json

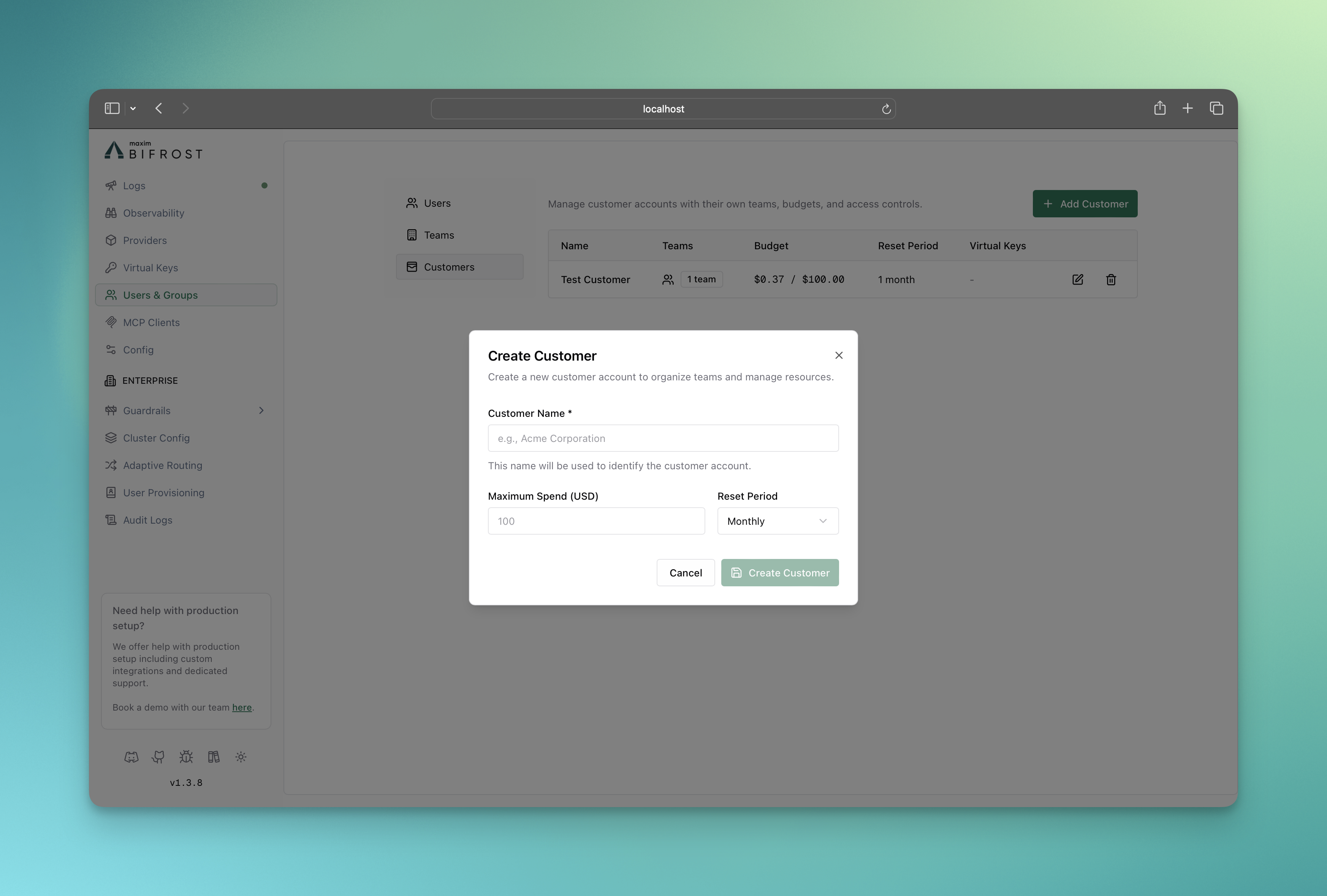

Go to Users & Groups → Customers
Click on Add Customer button

Fill the form and click on Create Customer button

Assign Teams to Customer
- Go to Teams page
- Edit the team and assign it to the customer
- Click on Save button
Assign Virtual Keys to Customer
- Go to Virtual Keys page
- Edit the virtual key and assign it to the customer
- Click on Save button

Create Customer:

curl -X POST http://localhost:8080/api/governance/customers \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Acme Corporation",
    "budget": {
      "max_limit": 2000.00,
      "reset_duration": "1M"
    }
  }'

Update Customer:

curl -X PUT http://localhost:8080/api/governance/customers/{customer_id} \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Acme Corp (Updated)",
    "budget": {
      "max_limit": 2500.00,
      "reset_duration": "1M"
    }
  }'

Get Customers:

# List all customers
curl http://localhost:8080/api/governance/customers

# Get specific customer
curl http://localhost:8080/api/governance/customers/{customer_id}

Delete Customer:

curl -X DELETE http://localhost:8080/api/governance/customers/{customer_id}

{
  "governance": {
    "customers": [
      {
        "id": "customer-acme-corp",
        "name": "Acme Corporation",
        "budget_id": "budget-customer-acme"
      },
      {
        "id": "customer-beta-inc",
        "name": "Beta Inc",
        "budget_id": "budget-customer-beta"
      }
    ],
    "budgets": [
      {
        "id": "budget-customer-acme",
        "max_limit": 2000.00,
        "reset_duration": "1M",
        "current_usage": 0.0,
        "last_reset": "2025-01-01T00:00:00Z"
      },
      {
        "id": "budget-customer-beta",
        "max_limit": 1500.00,
        "reset_duration": "1M",
        "current_usage": 0.0,
        "last_reset": "2025-01-01T00:00:00Z"
      }
    ]
  }
}

Features

Budget and Limits - Enterprise-grade budget management and cost control and rate limiting using virtual keys
Routing - Route requests to the appropriate providers/models and restrict api keys using virtual keys
MCP Tool Filtering - Manage MCP clients/tools for virtual keys

Usage

Making Virtual Keys Mandatory

All governance-enabled requests must include the virtual key header:

curl -X POST http://localhost:8080/v1/chat/completions \
  -H "Content-Type: application/json" \
  -H "x-bf-vk: vk-engineering-main" \
  -d '{
    "model": "gpt-4o-mini",
    "messages": [{"role": "user", "content": "Hello!"}]
  }'

By default governance is optional, meaning that if the virtual key header is not present, the request will be allowed but without any governance checks/routing. But you can make it mandatory by enforcing the virtual key header.

Web UI
API
config.json

Go to Config → Security
Check the Enforce Virtual Keys checkbox

curl -X PUT http://localhost:8080/api/config \
  -H "Content-Type: application/json" \
  -d '{
    "client_config": {
      "enforce_governance_header": true
    }
  }'

{
  "client": {
    "enable_governance": true,
    "enforce_governance_header": true
  }
}

When the governance header is enforced, the request will be rejected if the x-bf-vk header is not present.

Authentication and Virtual Keys

Virtual keys and HTTP authentication are independent layers that can work together:

Layer	Purpose	Headers
Authentication	Validates user identity	`Authorization: Basic/Bearer <credentials>`
Virtual Keys	Request routing and governance	`x-bf-vk`, `Authorization`¹, `x-api-key`, `x-goog-api-key`

When disable_auth_on_inference: true (auth disabled): Virtual keys can be passed via any supported header without additional authentication:

# Using x-bf-vk header
curl -X POST http://localhost:8080/v1/chat/completions \
  -H "x-bf-vk: <VIRTUAL_KEY>" \
  -H "Content-Type: application/json" \
  -d '{"model": "gpt-4o-mini", "messages": [...]}'

# Using Authorization header (OpenAI style)
curl -X POST http://localhost:8080/v1/chat/completions \
  -H "Authorization: Bearer <VIRTUAL_KEY>" \
  -H "Content-Type: application/json" \
  -d '{"model": "gpt-4o-mini", "messages": [...]}'

When disable_auth_on_inference: false (auth enabled): You must provide both authentication credentials AND the virtual key. Use x-bf-vk for the virtual key since the Authorization header is used for authentication:

curl -X POST http://localhost:8080/v1/chat/completions \
  -H "Authorization: Basic <base64-credentials>" \
  -H "x-bf-vk: <VIRTUAL_KEY>" \
  -H "Content-Type: application/json" \
  -d '{"model": "gpt-4o-mini", "messages": [...]}'

Configuring disable_auth_on_inference:

Web UI
API
config.json

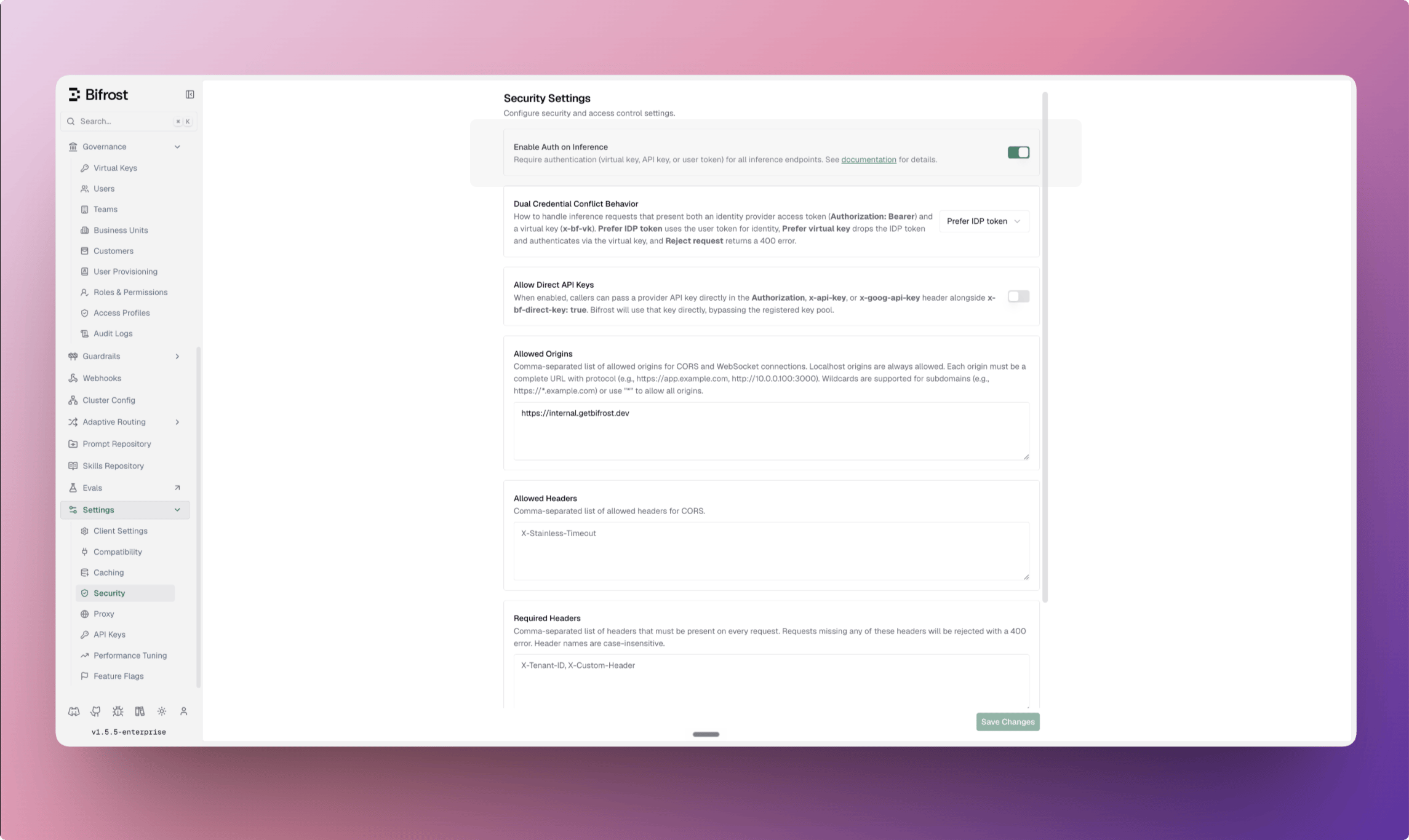

Go to Config → Security
Toggle Disable Auth on Inference to enable/disable

curl -X PUT http://localhost:8080/api/config \
  -H "Content-Type: application/json" \
  -d '{
    "auth_config": {
      "disable_auth_on_inference": true
    }
  }'

{
  "auth_config": {
    "is_enabled": true,
    "disable_auth_on_inference": true
  }
}

Error Responses

Virtual Key Not Found (400)

{
  "error": {
    "type": "virtual_key_required",
    "message": "virtual key is missing in headers"
  }
}

Virtual Key Blocked (403)

{
  "error": {
    "type": "virtual_key_blocked",
    "message": "Virtual key is inactive"
  }
}

Rate Limit Exceeded (429)

{
  "error": {
    "type": "rate_limited",
    "message": "Rate limits exceeded: [token limit exceeded (1500/1000, resets every 1h)]"
  }
}

Token Limit Exceeded (429)

{
  "error": {
    "type": "token_limited",
    "message": "Rate limits exceeded: [token limit exceeded (1500/1000, resets every 1h)]"
  }
}

Request Limit Exceeded (429)

{
  "error": {
    "type": "request_limited",
    "message": "Rate limits exceeded: [request limit exceeded (101/100, resets every 1m)]"
  }
}

Budget Exceeded (402)

{
  "error": {
    "type": "budget_exceeded",
    "message": "Budget exceeded: VK budget exceeded: 105.50 > 100.00 dollars"
  }
}

Model Not Allowed (403)

{
  "error": {
    "type": "model_blocked",
    "message": "Model 'gpt-4o' is not allowed for this virtual key"
  }
}

Provider Not Allowed (403)

{
  "error": {
    "type": "provider_blocked",
    "message": "Provider 'anthropic' is not allowed for this virtual key"
  }
}

Authorization can carry virtual keys only when auth is disabled (disable_auth_on_inference: true). When auth is enabled, Authorization is consumed by authentication and cannot be used for virtual keys. ↩

Quick Start

Providers & Guides

SDK Integrations

MCP Gateway

Custom plugins

Open Source Features

Enterprise Features

Overview

Configuration

User Groups

Teams

Customers

Features

Usage

Making Virtual Keys Mandatory

Authentication and Virtual Keys

Error Responses

Quick Start

Providers & Guides

SDK Integrations

MCP Gateway

Custom plugins

Open Source Features

Enterprise Features

​Overview

​Configuration

​User Groups

​Teams

​Customers

​Features

​Usage

​Making Virtual Keys Mandatory

​Authentication and Virtual Keys

​Error Responses

Footnotes

Overview

Configuration

User Groups

Teams

Customers

Features

Usage

Making Virtual Keys Mandatory

Authentication and Virtual Keys

Error Responses
